Vortex-TP Flow Meters SHM
Brand information

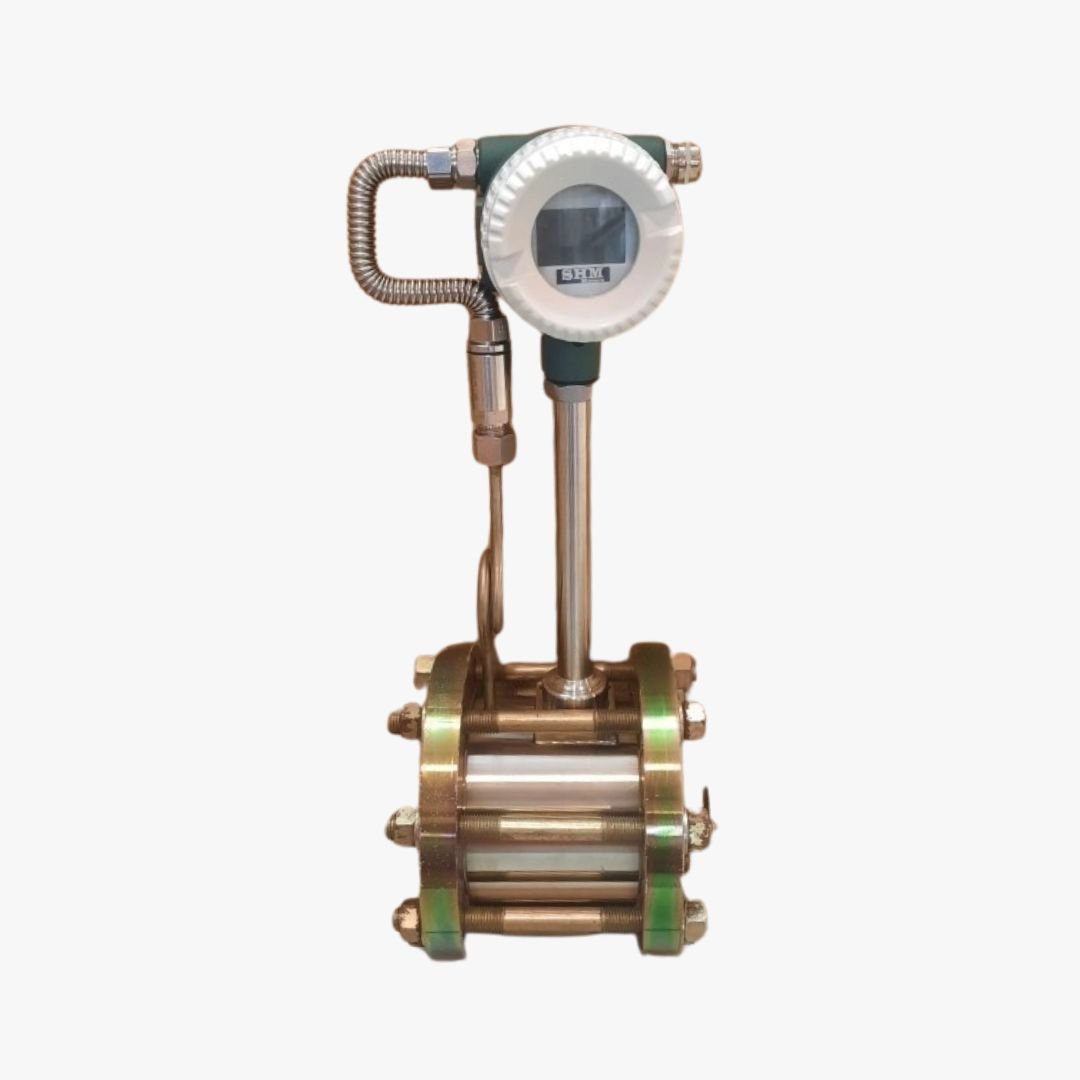

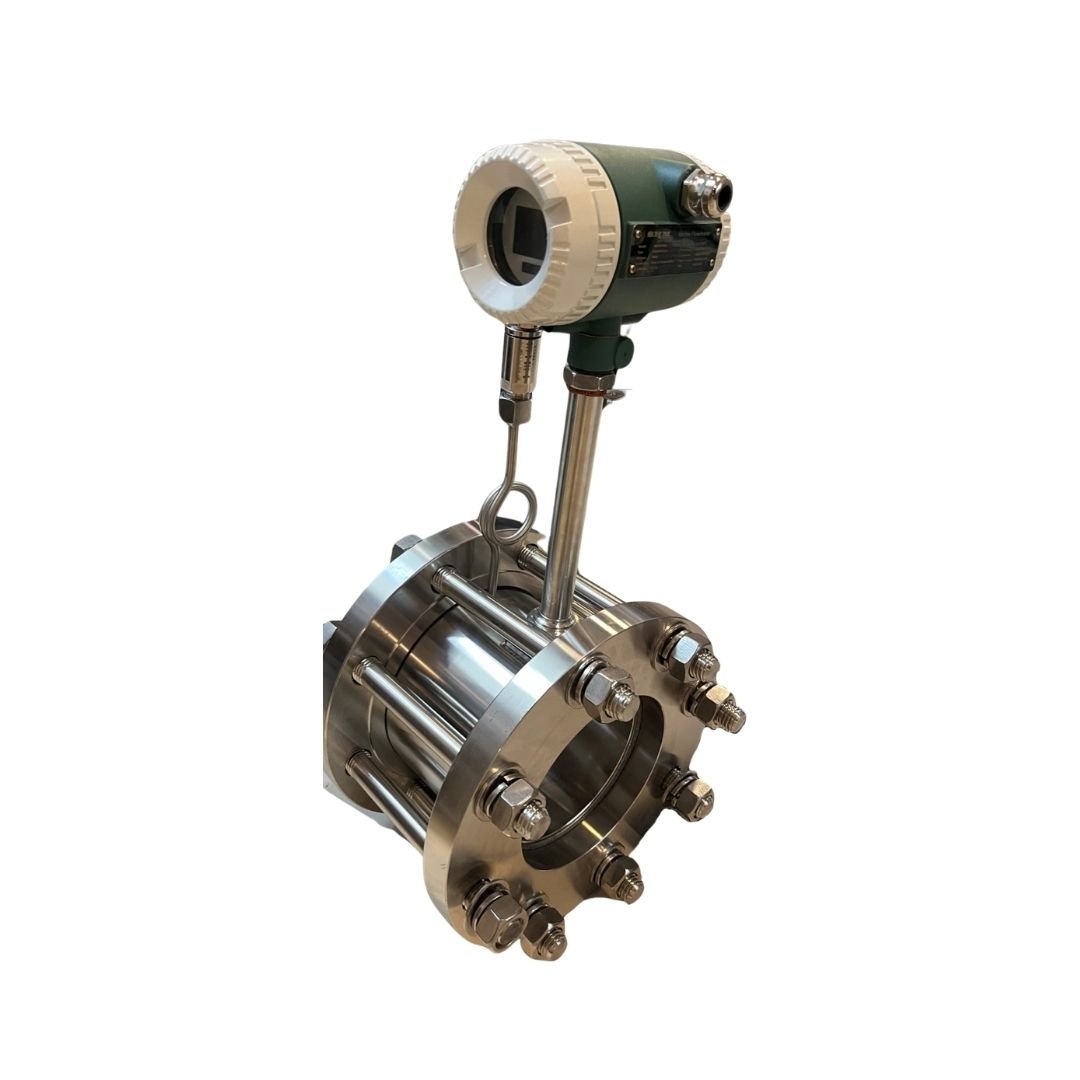

SHM Vortex-TP Flow Meter adalah flowmeter digital dengan sensor suhu dan tekanan yang dirancang untuk mengukur aliran gas, cairan, dan uap. Terbuat dari material Stainless Steel SUS 316L dengan housing aluminium berlapis epoxy, produk ini tahan terhadap lingkungan proses yang keras dan banyak digunakan pada industri minyak, kimia, energi, tekstil, serta manufaktur.
Spesifikasi Produk (General Features)
- Pressure Rating:
- DN25–200: 4.0 MPa
- DN250–300: 1.6 MPa
- Medium Temperature: –40 ~ 250 °C (standard), –40 ~ 320 °C (extended)
- Service Voltage: +12V DC, +24V, or 3.6V Battery Supply
- Protection Grade: IP65 (optional: IP68)
- Environment Condition:
- Temperature: –20 ~ 55 °C
- Humidity: 5–90% RH
- ATM Pressure: 86–106 kPa
- Medium: Gas, Liquid, Steam
- Signal Output:
- Analog: 4–20 mA
- Frequency: 0 Hz – 50 kHz
- Alarm Output: 2 outputs (high/low limit)
- Communication: RS485, RS232, MODBUS, HART, PROFIBUS-DP
- Standards: ISO 9001 & ISO 4064
- Warranty: 2 Years (Full Service & Spare Parts)
