Jual Digital Multimeter Victor Model VC890C+
Informasi Produk
Spesifikasi :
Tersedia dan siap dikirim
Jual Digital Multimeter Victor Model VC890C+

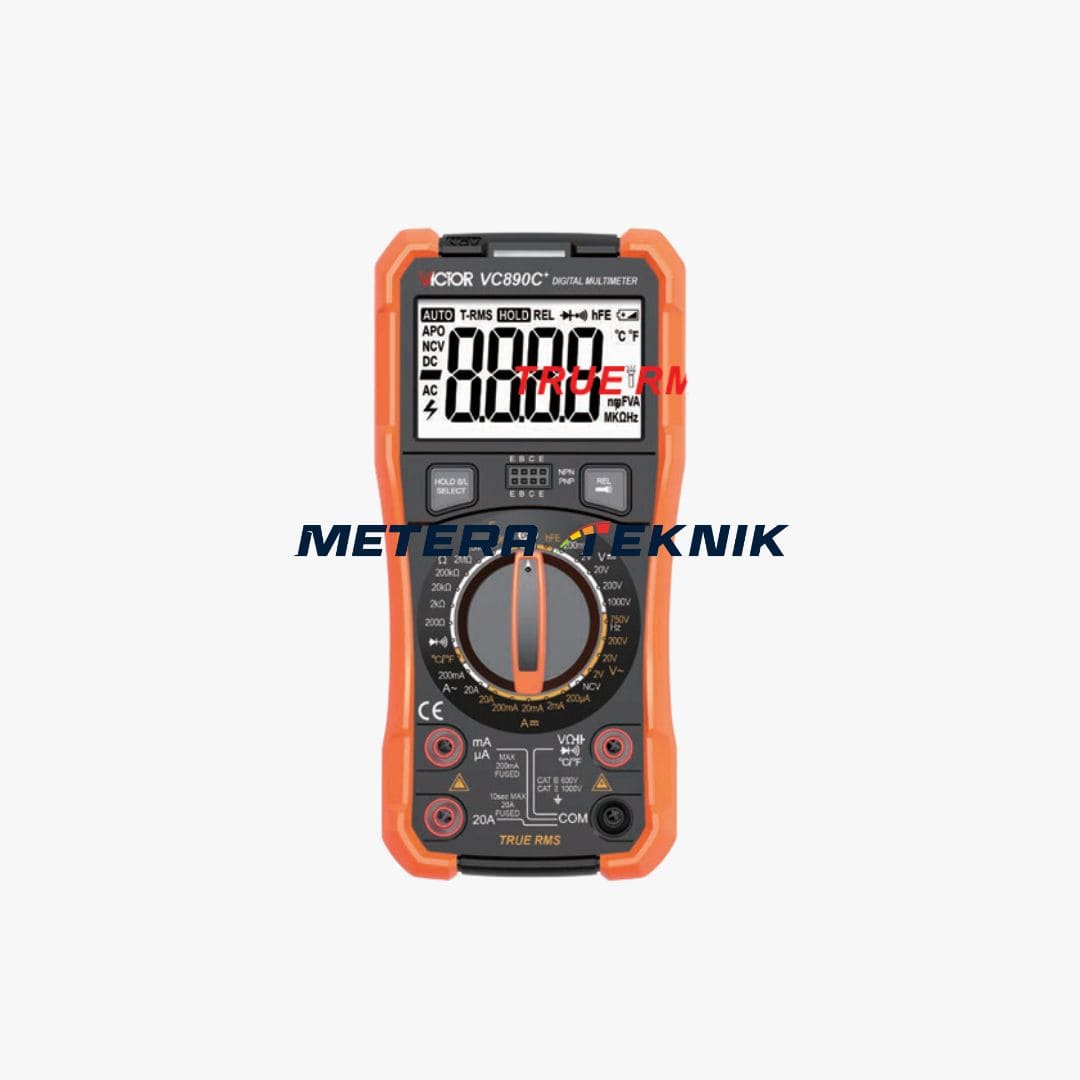

Digital Multimeter Victor Model VC890C+
1. SUMMARIZE
This meter is a stable multimeter with 28mm LCD display, driven by battery. It's widely used on measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, diode, transistor, continuity test and with the function of auto power off and backlight . The meter takes integrated circuit as the core. It’s an ideal tool for lab, factory, wireless lover and family.
2. OPEN PACKING FOR CHECKING
Open the box, take out the meter, check the items below if they are missing or damaging:
1.5V AA LR6 Battery * 2pcs； Manual * 1pc； Test lead * 1pair
Please contact with your supplier, if you find out any problems.
3. SAFETY NOTE
The meter meets the standards of IEC61010 (the safety standards or equal GB4793.1 standards request issued by IEC) Read the operation manual carefully before operation.
3-1.Do not input limit over-ranged.
3-2.The voltage below 36V is safety. To avoid electric shock, check whether the test leads connection is correct and insulation is fine when measuring over 36V DCV or 25V ACV. When input over 24V ACV or DCV, the warning symbol for high voltage will display
3-3.Remove the test leads when changing function and range.
3-4.To select correct function and range, beware of error operation; For your safety please note, although there is protective function of whole range for this series meters.
3-5.Do not operate the meter if the battery and back cover is not fixed.
3-6.Do not input voltage when measuring resistance, capacitance, diode, continuity test.
3-7.Remove test leads from test point and turn off the power before replacing battery and fuse.
