Jual Digital Turbine Flow Meter Magnos Size 4 Inch
Informasi Produk
Spesifikasi :

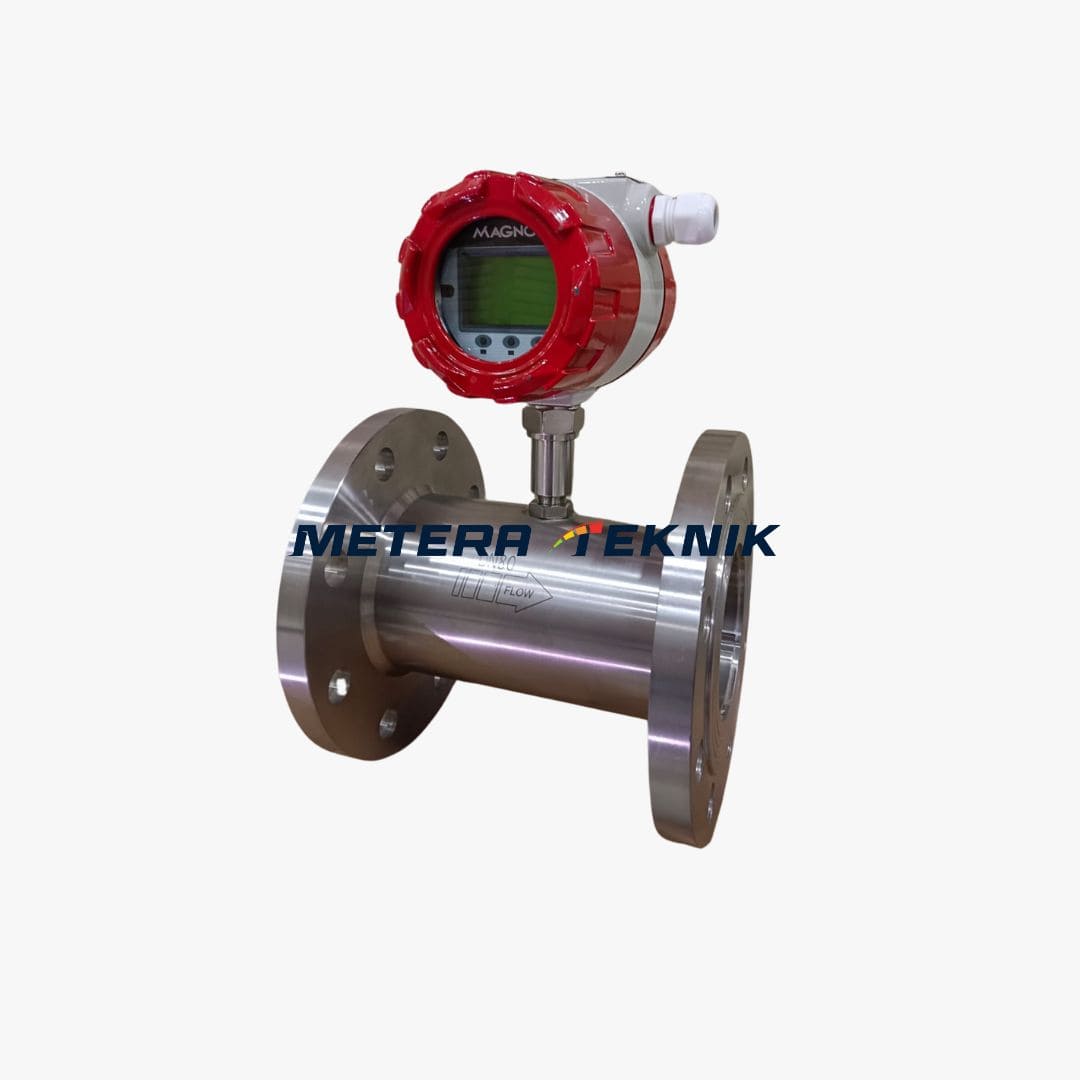

Turbine Flow Meter Digital MAGNOS
Aplikasi : Kerosene , Diesel Palm Oil , Light Oil , Heavy Oil and Water
Digital Turbine Flow Meter Magnos Size 4 Inch
Meter Size : 4 Inch ( DN 100mm )
Tipe : MGS-TUB
Standart Flow Range :
Water : 20-200 M3/H
Oil : 15-150 M3/H
Standart Pres Rating ( Mpa ) : Flange 1.6
Coustomized Pres Rating ( Mpa )-Flange Fitting : 4.0,6.3,12,16,25
Tersedia dan siap dikirim
Jual Digital Turbine Flow Meter Magnos Size 4 Inch
Turbine Flow Meter Digital MAGNOS
Description
Turbune Gas Meters Are Flow Meters. The Flow gas a turbine wheel, and thus, the rotating speed of the turbine is proportional to the linear speed of the gas. The movement is the mechanically transmitted to the totaliser through the magnetic coupling.
FEATURES
-Medium : All kinds of oils ( kerosene , Diesel palm oil , light oil , Heavy oil ) and water.
-Connection : Thread DN 4-DN 50
: Fange DN 15-DN 200 mm ( PN 16 )
: Water DN 15-DN100 mm
-Output : Pulse / 4-20mA
-Power Supply : 24 VDC
-Nominal Pressure : 1,6 Mpa
-Fliude Temperature : -25+90°C
-Protection Grade : IP65
-Accuracy : 0.5 % - 1.5 %
-Wetted Component : Housing SUS304 ( Optional : SUS316L )
: Bearings and shaft : Tungsten Carbide
: Rotor : Standart - 2Cr13 Stainless Steel ( Optional Alloy CD4Mcu )
: Retaining Rings : 316 Stainless Steel
