Jual Electromagnetic Flow Meter MAGNOS integrated Size 16 Inch

Informasi Produk

Spesifikasi :

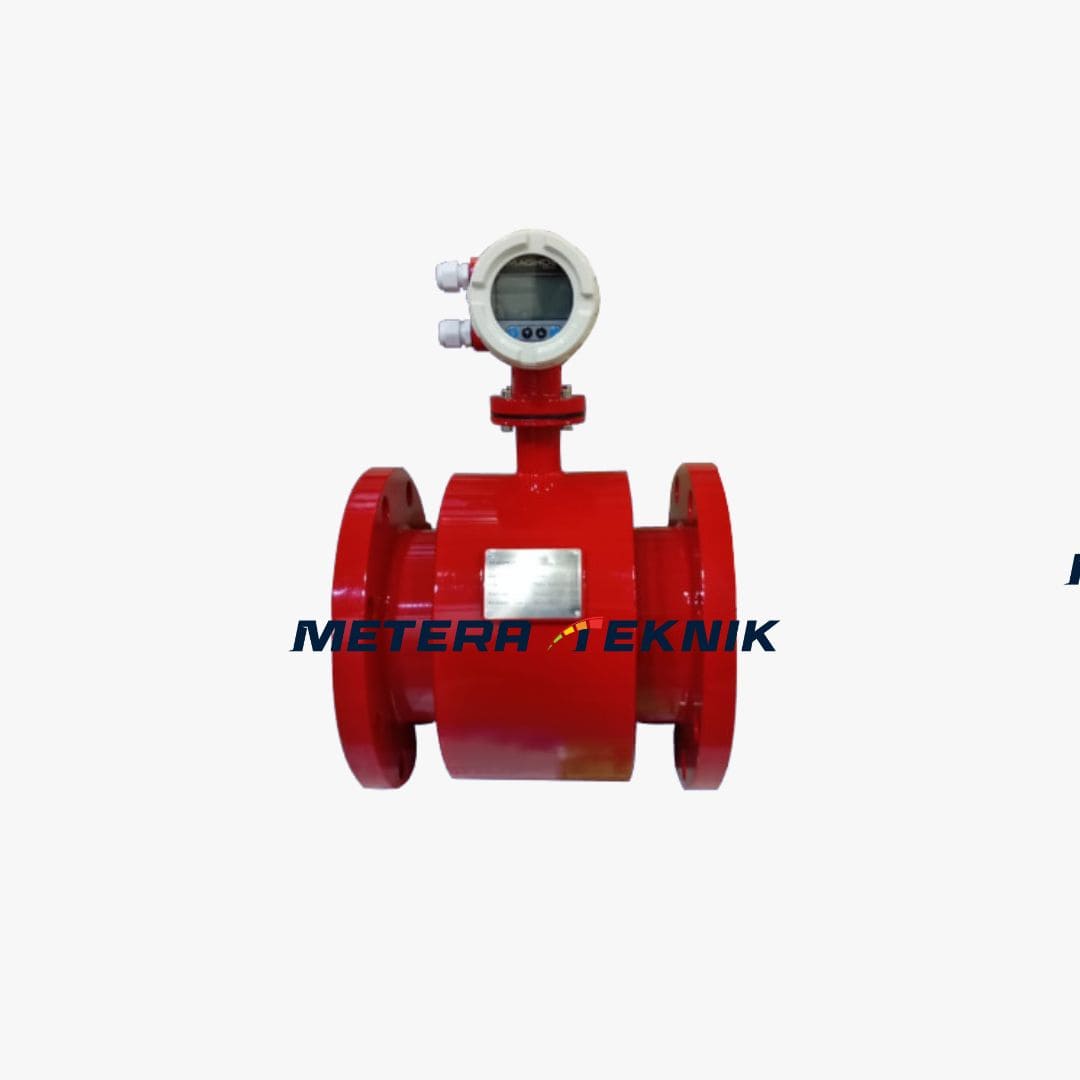

Electromagnetic Flow Meter MAGNOS integrated Size 16 Inch

Application

Meter Size : 16 Inch ( DN 400mm )

Flow Range Table & Velocity table

0.1m/s

45

0.2m/s

90

0.5m/s

226.1

1m/s

452

4m/s

1809

10m/s

4522

12m/s

5426

15m/s

6782

Weight : 181 kg

Tersedia dan siap dikirim

Jual Electromagnetic Flow Meter MAGNOS integrated Size 16 Inch

Jual Electromagnetic Flow Meter MAGNOS integrated Size 16 Inch

MAGNOS Electromagnetic Flow Meter Tipe Integrated

Description

MAGNOS magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement.Electromagnetic flow meter  don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrdes, and sizes, which can meet various conductive liquids.

INDUSTRIES

-Effluent Treatment Plant

-Sewage Treatment Plant water Supply Scheme

-Textile Processing Industries

-Steel & Aluminum Industries

-Chemical & Fertilizer Industries

-Dairy Industries

-Sugar Industries

APPLICATIONS

-Raw Water             -Waste Water            -Sea Water          -Pulp & Beverages Acidic & Alkaline solution

-Potable Water        -Cooling Water        -Brine Solutions   -Heat Exchanger Industrial

FEATURES

-High accuracy : +0.55% reading, + 0.2% optional

-Velocity : 0.1 -15m/s

-Ambient Temperature : -25°C-60°C

-Electrode material : SUS316L ( Optional : Titanum, Tantalum, Tungsten Carbide, Hastelloy B, Hastelloy C )

-Liner Material : Polytetrafluoroethylene ( PTFE ), ( Optional : PFA, Neoprene ( rubber ), Polyurethane, F46 )

-Protocol : Alarm

-Material Hoising : Carbon Steel

-Flange Connection : PN 16 ( Optional : Jis 10K, Ansi 150, PN 40 )

-Power Supply : AC 220 V

-Protection Grade : IP 65

-Signal output : Analog output 4-20 mA, Communication RS 485.
