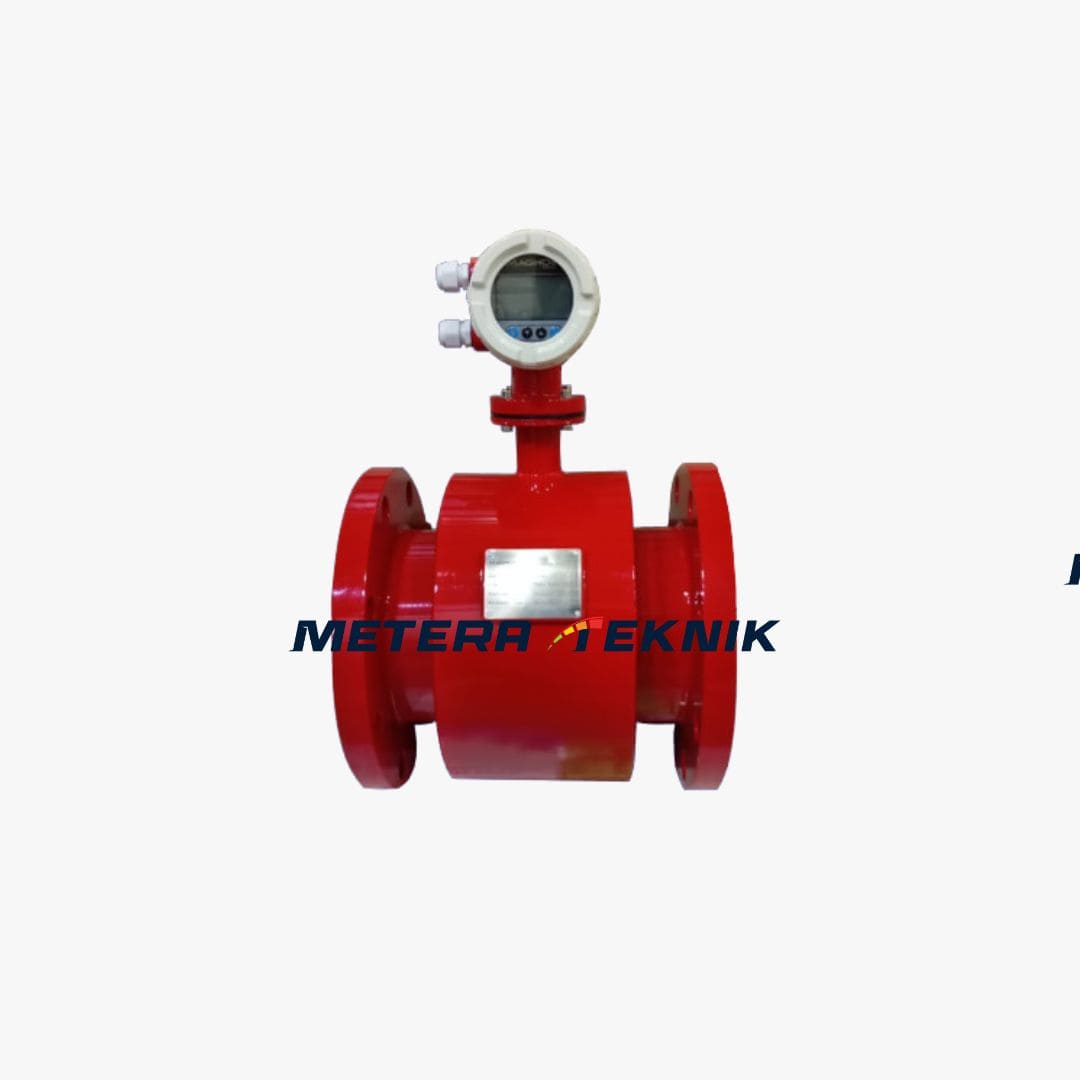

Jual Electromagnetic Flow Meter MAGNOS integrated Size 18 Inch
Informasi Produk
Spesifikasi :
Electromagnetic Flow Meter MAGNOS integrated Size 18 Inch
Application
Meter Size : 18 Inch ( DN 450mm )
Flow Range Table & Velocity table
0.1m/s
57
0.2m/s
114
0.5m/s
286.1
1m/s
572
4m/s
2289
10m/s
5723
12m/s
6867
15m/s
8584
Weight : 216 kg
Tersedia dan siap dikirim
Jual Electromagnetic Flow Meter MAGNOS integrated Size 18 Inch
MAGNOS Electromagnetic Flow Meter Tipe Integrated
Description
MAGNOS magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement.Electromagnetic flow meter don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrdes, and sizes, which can meet various conductive liquids.
INDUSTRIES
-Effluent Treatment Plant
-Sewage Treatment Plant water Supply Scheme
-Textile Processing Industries
-Steel & Aluminum Industries
-Chemical & Fertilizer Industries
-Dairy Industries
-Sugar Industries
APPLICATIONS
-Raw Water -Waste Water -Sea Water -Pulp & Beverages Acidic & Alkaline solution
-Potable Water -Cooling Water -Brine Solutions -Heat Exchanger Industrial
FEATURES
-High accuracy : +0.55% reading, + 0.2% optional
-Velocity : 0.1 -15m/s
-Ambient Temperature : -25°C-60°C
-Electrode material : SUS316L ( Optional : Titanum, Tantalum, Tungsten Carbide, Hastelloy B, Hastelloy C )
-Liner Material : Polytetrafluoroethylene ( PTFE ), ( Optional : PFA, Neoprene ( rubber ), Polyurethane, F46 )
-Protocol : Alarm
-Material Hoising : Carbon Steel
-Flange Connection : PN 16 ( Optional : Jis 10K, Ansi 150, PN 40 )
-Power Supply : AC 220 V
-Protection Grade : IP 65
-Signal output : Analog output 4-20 mA, Communication RS 485.
