Jual Electromagnetic Flow Meter MAGNOS integrated Size 5 Inch
Informasi Produk
Spesifikasi :

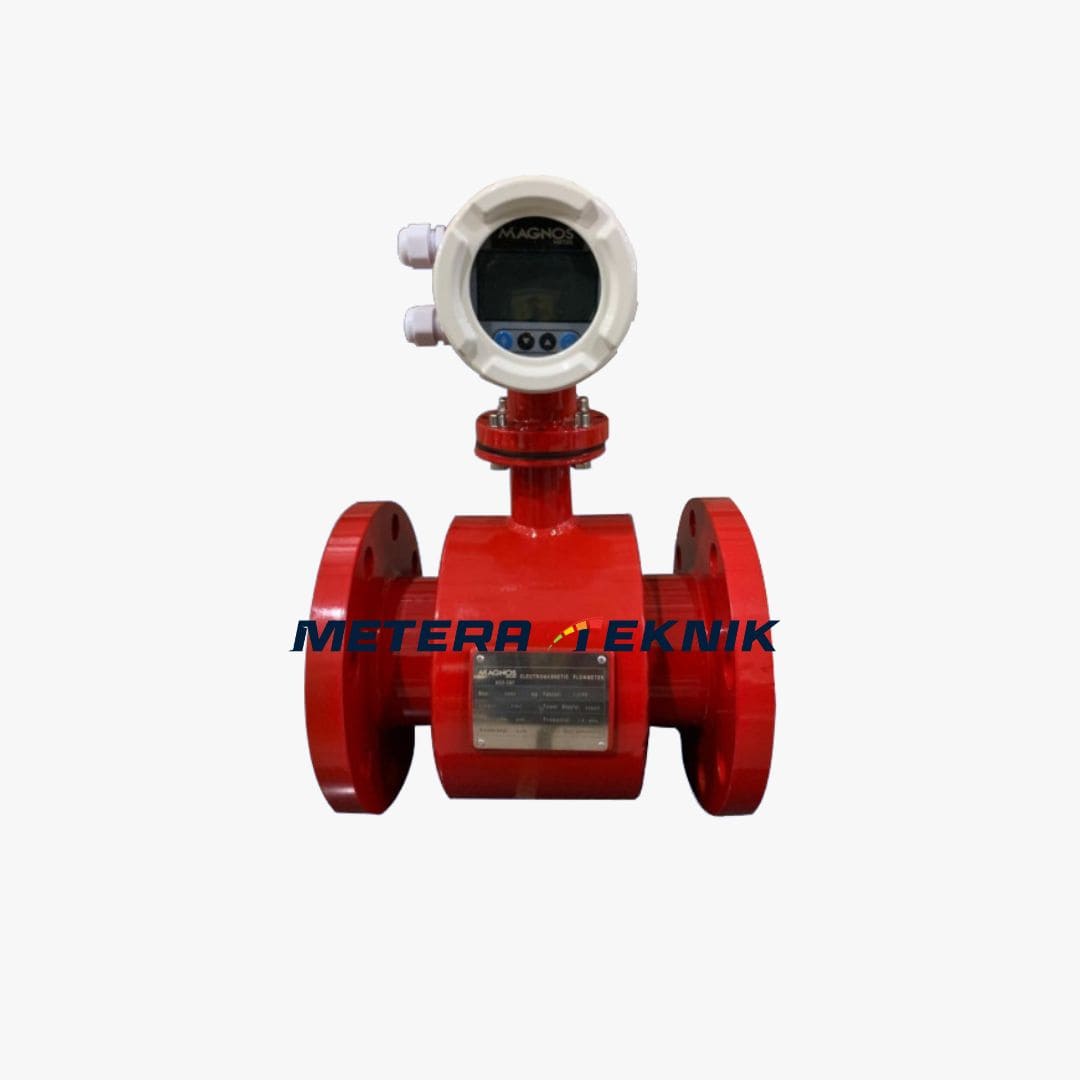

Electromagnetic Flow Meter MAGNOS integrated Size 5 Inch
Application
Meter Size : 5 Inch ( DN 125mm )
Flow Range Table & Velocity table
0.1m/s
4.42
0.2m/s
8.83
0.5m/s
22.08
1m/s
44.16
4m/s
176.63
10m/s
441.56
12m/s
529.9
15m/s
662.34
Weight : -
Tersedia dan siap dikirim
Jual Electromagnetic Flow Meter MAGNOS integrated Size 5 Inch
MAGNOS Electromagnetic Flow Meter Tipe Integrated
Description
MAGNOS magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement.Electromagnetic flow meter don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrdes, and sizes, which can meet various conductive liquids.
INDUSTRIES
-Effluent Treatment Plant
-Sewage Treatment Plant water Supply Scheme
-Textile Processing Industries
-Steel & Aluminum Industries
-Chemical & Fertilizer Industries
-Dairy Industries
-Sugar Industries
APPLICATIONS
-Raw Water -Waste Water -Sea Water -Pulp & Beverages Acidic & Alkaline solution
-Potable Water -Cooling Water -Brine Solutions -Heat Exchanger Industrial
FEATURES
-High accuracy : +0.55% reading, + 0.2% optional
-Velocity : 0.1 -15m/s
-Ambient Temperature : -25°C-60°C
-Electrode material : SUS316L ( Optional : Titanum, Tantalum, Tungsten Carbide, Hastelloy B, Hastelloy C )
-Liner Material : Polytetrafluoroethylene ( PTFE ), ( Optional : PFA, Neoprene ( rubber ), Polyurethane, F46 )
-Protocol : Alarm
-Material Hoising : Carbon Steel
-Flange Connection : PN 16 ( Optional : Jis 10K, Ansi 150, PN 40 )
-Power Supply : AC 220 V
-Protection Grade : IP 65
-Signal output : Analog output 4-20 mA, Communication RS 485.
