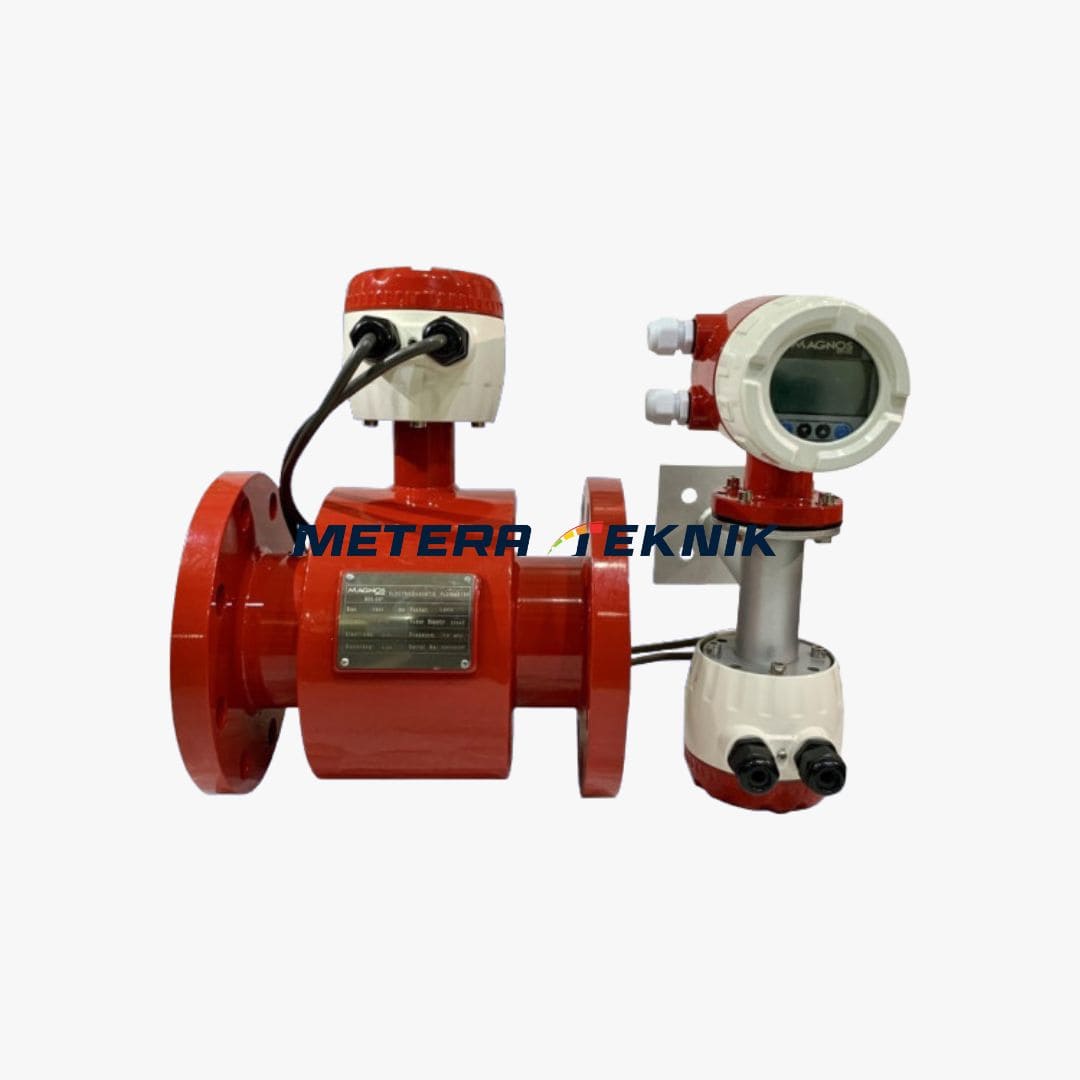

Jual Electromagnetic Flow Meter MAGNOS Separated Size 1/2 Inch
Informasi Produk
Spesifikasi :
Electromagnetic Flow Meter MAGNOS Separated Size 1/2 Inch
Application
Meter Size : 1/2 Inch ( DN 15mm )
Flow Range Table & Velocity table
0.1m/s
0.064
0.2m/s
0.127
0.5m/s
0.318
1m/s
0.636
4m/s
2.543
10m/s
6.359
12m/s
7.63
15m/s
9.538
Weight : 11 Kg
Tersedia dan siap dikirim
Jual Electromagnetic Flow Meter MAGNOS Separated Size 1/2 Inch
MAGNOS Electromagnetic Flow Meter Tipe Separated
Description
MAGNOS magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement.Electromagnetic flow meter don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrdes, and sizes, which can meet various conductive liquids.
INDUSTRIES
-Effluent Treatment Plant
-Sewage Treatment Plant water Supply Scheme
-Textile Processing Industries
-Steel & Aluminum Industries
-Chemical & Fertilizer Industries
-Dairy Industries
-Sugar Industries
APPLICATIONS
-Raw Water -Waste Water -Sea Water -Pulp & Beverages Acidic & Alkaline solution
-Potable Water -Cooling Water -Brine Solutions -Heat Exchanger Industrial
FEATURES
-High accuracy : +0.55% reading, + 0.2% optional
-Velocity : 0.1 -15m/s
-Ambient Temperature : -25°C-60°C
-Electrode material : SUS316L ( Optional : Titanum, Tantalum, Tungsten Carbide, Hastelloy B, Hastelloy C )
-Liner Material : Polytetrafluoroethylene ( PTFE ), ( Optional : PFA, Neoprene ( rubber ), Polyurethane, F46 )
-Protocol : Alarm
-Material Hoising : Carbon Steel
-Flange Connection : PN 16 ( Optional : Jis 10K, Ansi 150, PN 40 )
-Power Supply : AC 220 V
-Protection Grade : IP 65
-Signal output : Analog output 4-20 mA, Communication RS 485.
