Jual Electromagnetic Flow Meter SHM integrated Size 3 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Widely applied in the fields of chemical, petroleum, metallugry, food and beverage & pharmaceutical industry, water & waste water, agriculture & irrigation,paper making.
Tersedia dan siap dikirim
Jual Electromagnetic Flow Meter SHM integrated Size 3 Inch

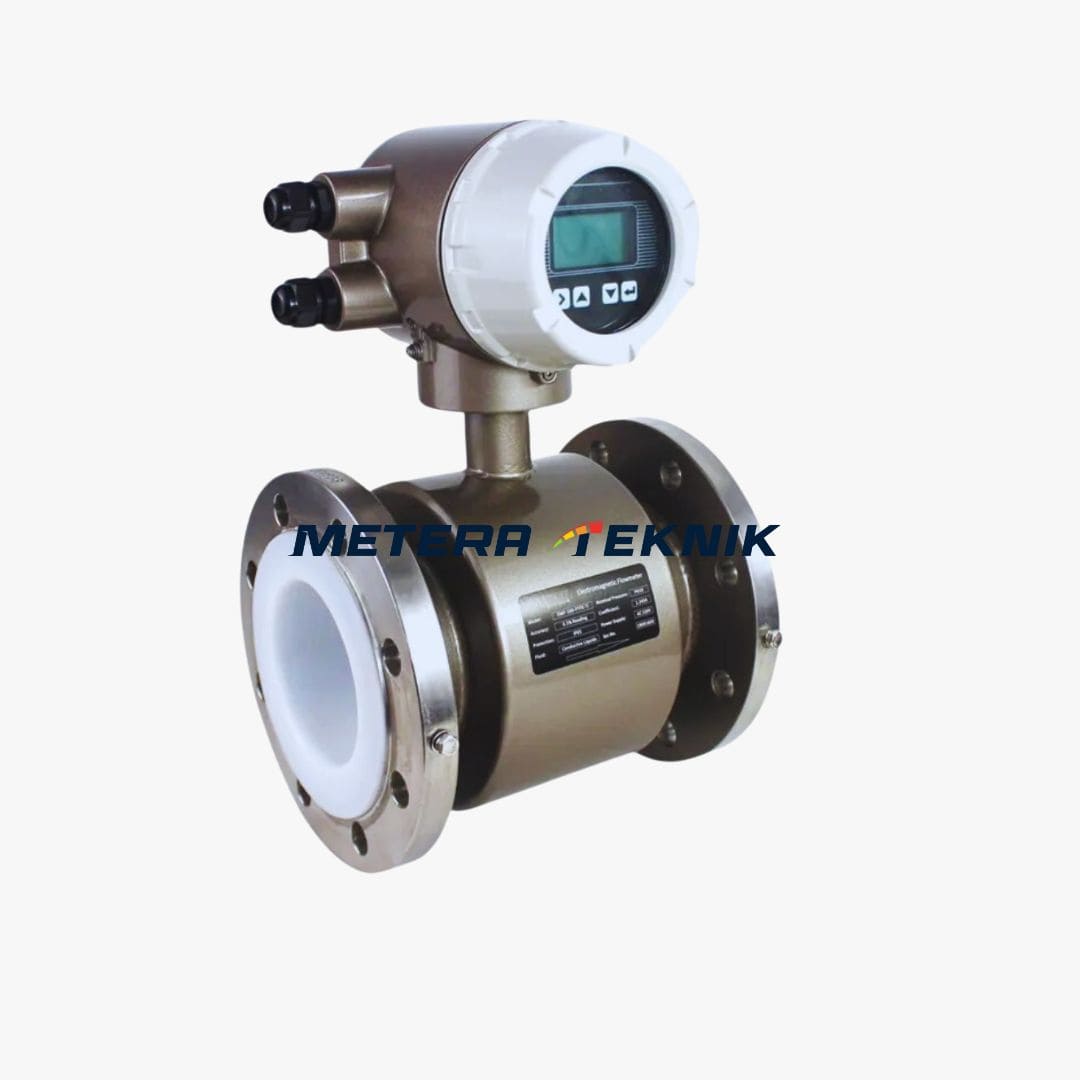

SHM Electromagnetic Integrated Flow Meters
Digital Elektromagnetic, Conductive Liquid Meters Meter Integrated Type 0-80° C Size DN 2000 (1/2-80)
DESCRIPTION
SHM Electromagnetic Flow Meters: Digital Flow Meter for Coductive Liquid.Tube and Flange are made from Stainless Steel, Electrode from otanium & lining from PTFE. No movable parts in this meters, simple structure, reliable. The accuacy are not affected by,the change of measured medium's pressure, density, temperature, viscosity & other.power consumption below 20w.
APPLICATION
Widely applied in the fields of chemical, petroleum, metallugry, food and beverage & pharmaceutical industry, water & waste water, agriculture & irrigation,paper making.
FEATURES
-Accuracy : + /-0.5%
-Measurement : 0.01-15 m/s
-Flange Connection : PN16 /PN40 / ANSI 150
-Protection Grade : IP 65, (req, IP 67, IP68)
-Electrode material : Titanium / Hastelloy C
-Lining Material : Polytetrafluoroethylene (PTFE)
-Power Suppiy : AC220V / DC24V
-Signal Output : Analog 4-20mA 0Hz-50Khz, RS 485, RS 232, MODBUS,HART, PROFIBUS-DP.
-ISO 9001 & ISO 4064.
-Warranty 2 yaears (Full Service & Spare parts).
