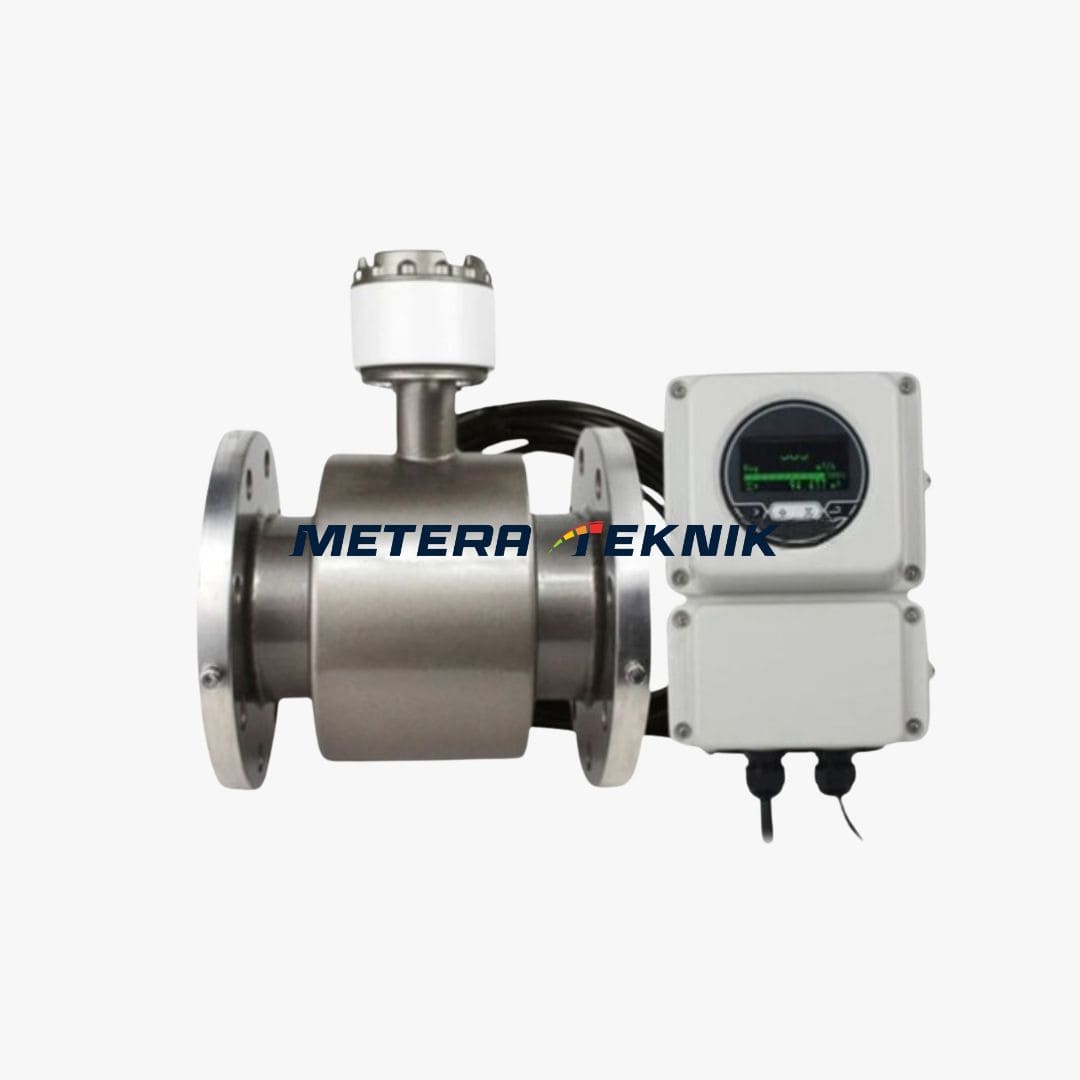

Jual Electromagnetic Flow Meter SHM Separated Size 3/4 Inch
Product information
Digital Elektromagnetic, Conductive Liquid Meters Meter Separated Type 0-140° C Size DN 15-2000 (1/2-80). SHM Electromagnetic Flow Meters: Digital Flow Meter for Coductive Liquid.Tube and Flange are made from Stainless Steel, Electrode from otanium & lining from PTFE. No movable parts in this meters, simple structure, reliable. The accuacy are not affected by,the change of measured medium's pressure, density, temperature, viscosity & other.power consumption below 20w.
APPLICATION:
Widely applied in the fields of chemical, petroleum, metallugry, food and beverage & pharmaceutical industry, water & waste water, agriculture & irrigation,paper making.
Spesifikasi Produk
Accuracy : + /-0.5%
Measurement : 0.01-15 m/s
Flange Connection : PN16 /PN40 / ANSI 150
Protection Grade : IP 65
Electrode material : Titanium / Hastelloy C
Lining Material : Polytetrafluoroethylene (PTFE)
Power Suppiy : AC220V / DC24V
Signal Output : Analog 4-20mA ,DHz-50Khz, RS 485, RS 232, MODBUS,HART, PROFIBUS-DP.
ISO 9001 & ISO 4064.
Warranty 2 yaears (Full Service & Spare parts).
