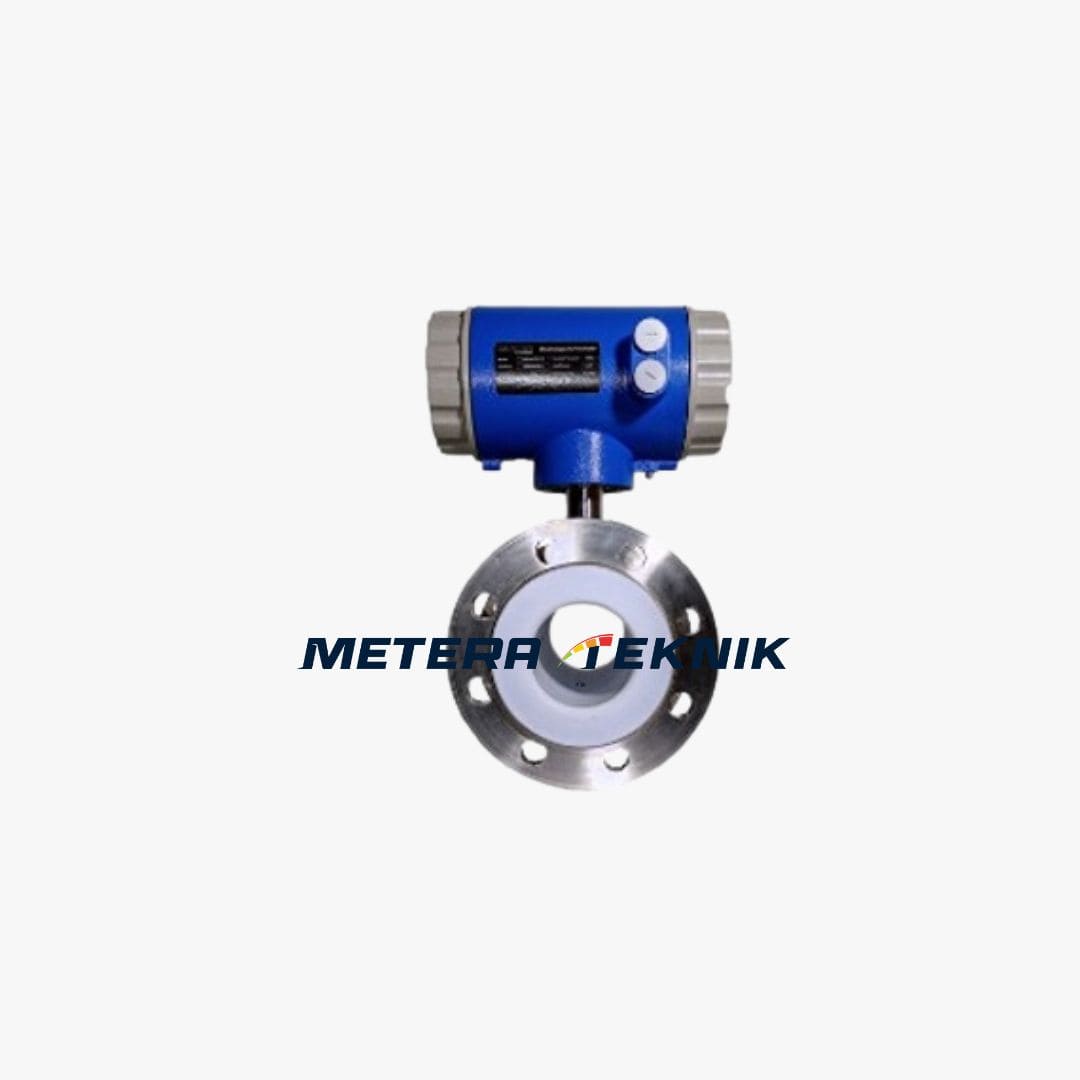

Jual Electromagnetic Sanitary Flow Meter SHM Size 5 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Conductive Water Not Applicable For RO ,Demin, Filtered Water
Spesifikasi
Meter Size : 5 Inch ( DN 125mm )
Nominal Presure ( Mpa )
1,6
Flow Rate (m3/h)
Min Flow: 0.5m/s
22.08
Max Flow: 15 m/s
662.67
Weight :-
Tersedia dan siap dikirim
Jual Electromagnetic Sanitary Flow Meter SHM Size 5 Inch
Electromagnetic Sanitary Flow Meter DN 10-500
INTEGRATED FLANGE
SPECIFICATION
-Size : DN 10-500
-Meterial :Body SS316L Head Epoxy Coated Aluminuium Flange SS316L
-Temperature :0-100c
-Pressure : 16 Bar / ( 40 Bar Opt)
-Power Supply : 220 VAC / 24VDC
-Output : Pulse , 4-20mA HART,RS 485 (Modbus)
-Protection Grade : IP 65
-Connection : Flange PN 16 / PN 40/ ANSI 150
-Accuracy : +/ -0.5%
-Measurement Range : 0.1-15 m/s
-Repeatibility : -
-Exposion Proof : Exd IIBT4
ISO 9001 & ISO 4064
Wararanty 2 Years ( Full Service & Spare Parts )
Electrode Material SS 316/ Tungsten Carbide/ Hastelloy B/ Hastelloy C/ Titanum/ Tantalum/ Platinum Iridium.
Lining Materilal Polytetrafluoroethylene (PTFE ) PFA / F46/ Neoprene/ Polyurethane.
APPLICATION
Conductive Water
Not Applicable For Ro, Demin, Filtered Water.
