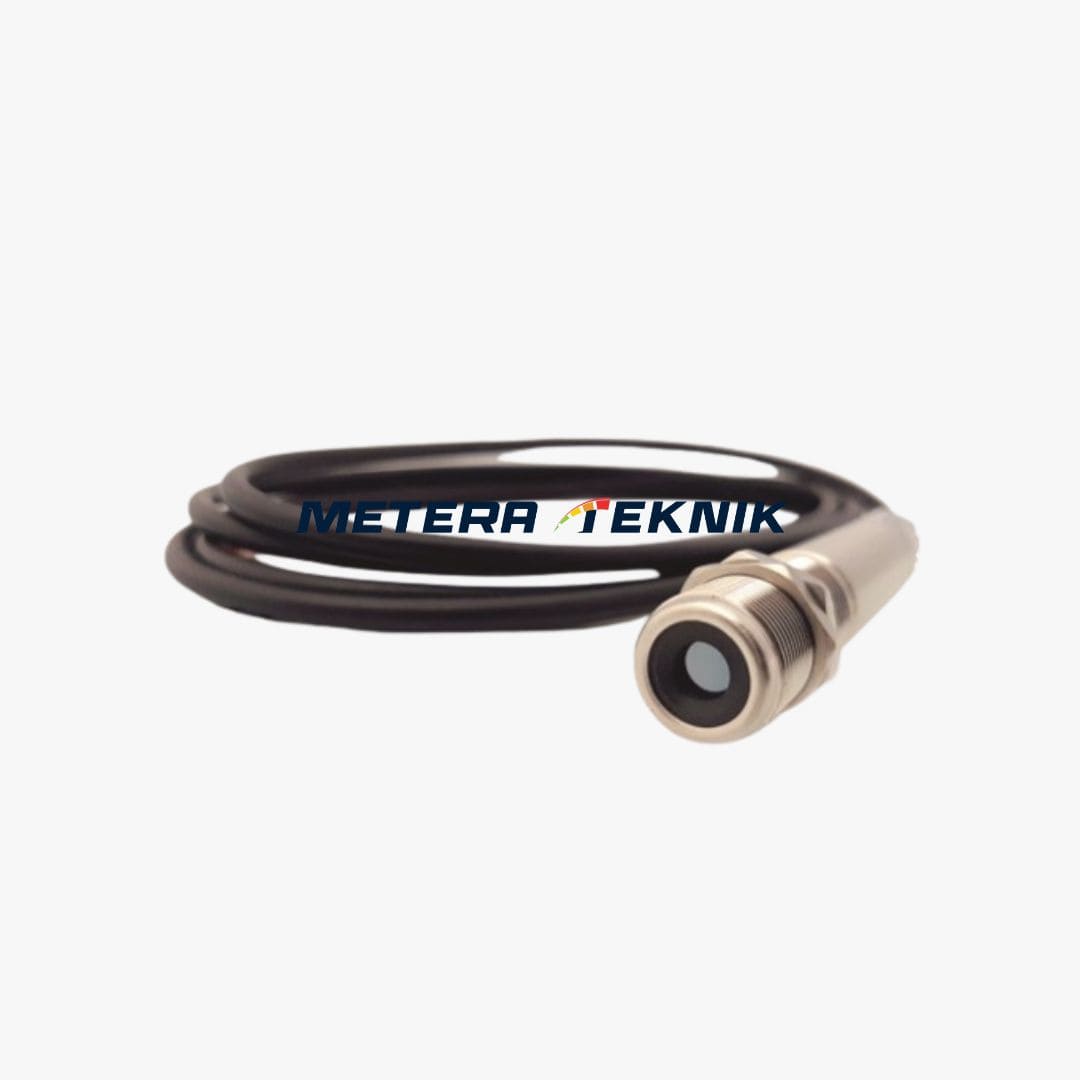

Jual IRTEK IRF500K ON LINE INFRARED THERMOMETER
Product information
- Range : 0 to 500°C
- Ratio : 15 : 1
- Adjustable Emissivity : 0.1 to 1.0
- Accuracy : ±1% of reading or ±1.5°C whichever is greater
Spesifikasi Produk
- Temperature Range: 500 deg * C (32-932°F)
- Spectral Response: 18-14μm
- Distance to spot ratio: 15:1
- Accuracy: ±1% of reading 1.5 deg * C whicever is greater
- Repeatability: ±0.5% of reading 1 deg * C whicever is greater
- Response time: 150ms
- Emissivity: 0.100-1.000 (PC Software adjustable)
- Resolution: 0.1 deg * C
- Signal Processing: peak hold, valley hold, average
- Software: IR online
- Analog output: K-Type
- Digital Output: RS485 (2 wire)
- Maximum Loop Resistance: 10ΚΩ
- T/Coutput impedance: 200
- Ambient temperature: 0 - 70 deg * C
- Storage temperature: -20 to 85 deg * C
- Relative humidity: 10-95% non-condensing
- Current draw: 50mA max
- Cable temperature: -20-80 deg * C
- Cable Length: 2m
- Power supply: 24VDC ±20%
