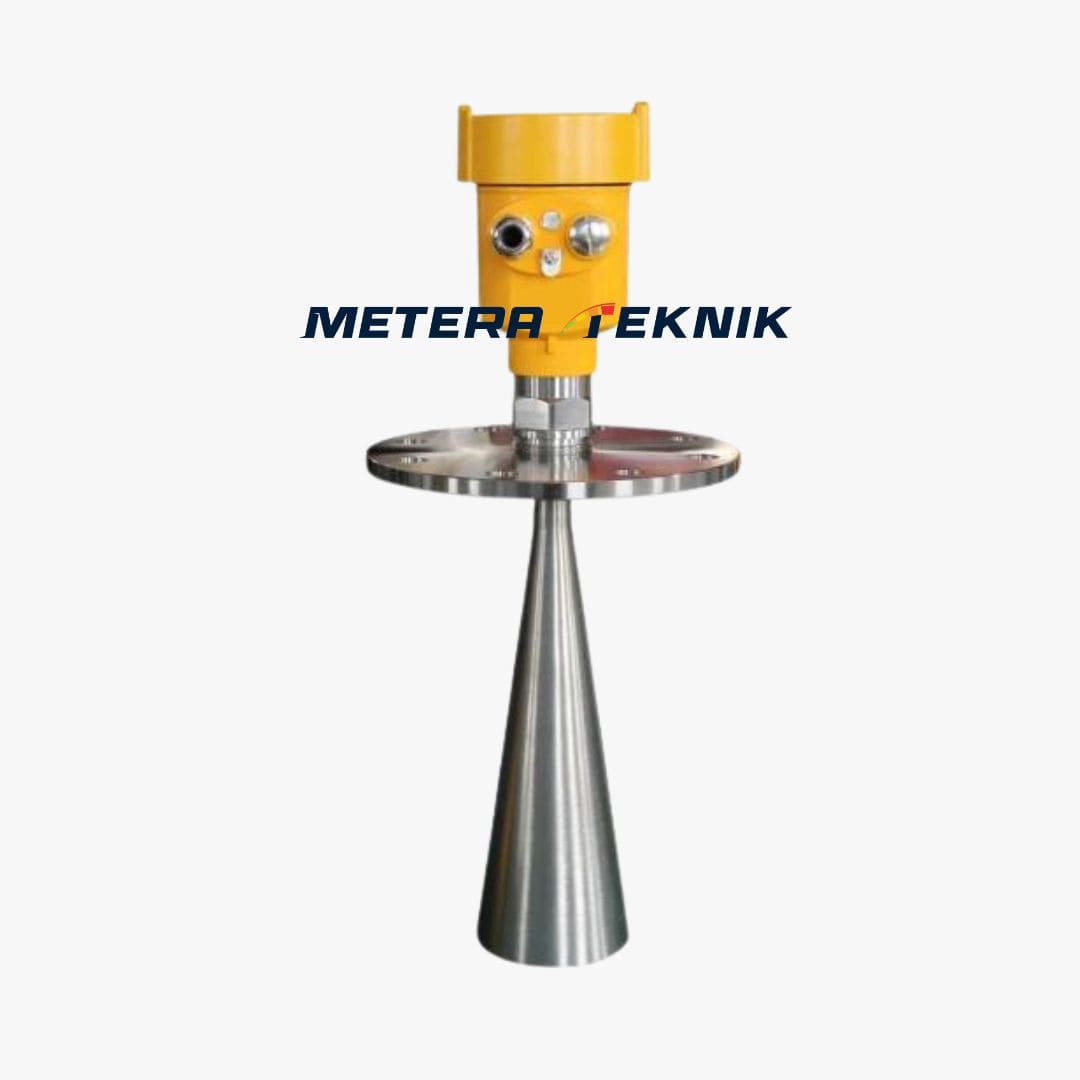

Jual Radar Level Meter SHM Size 3 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Liquids / Slightly Corrosive Liquids
Spesifikasi
Meter Size : 3 Inch ( DN 80mm )
Connection : Flange
Measurement Range ( m ) : 30
Frequency Range ( Hz ) : 30
Tersedia dan siap dikirim
Jual Radar Level Meter SHM Size 3 Inch
Radar Level Meter DN 50-100
SPECIFICATION
-Size : DN 50-100
-Material : Head Body Coated Aluminium Body SS304 Flange SS304
-Temperature : 0-130C ( 0-230C Option )
-Pressure : 0.1-4.0 Mpa
-Power Supply : 24 VCD / 220 VAC
-Output : 4-20 mA HART - RS 485
-Protection Grade : IP 67
-Connection : Screw / Flange PN 16
-Accuracy : + / -3 mm
-Measuring Range : 30m
-Frequency Range : 26 GHz
-Explosion Proof : Exia II C T6 / Exd ia II C T6Gb
Warranty 2 Years ( Full Service & Spare Parts )
APPLICATION
Liquids / Slightly Corrosive Liquids
