Jual Scraper Oil Analog Flow Meter SHM Size 3 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
Spesifikasi
Meter Size : 3 Inch ( DN 80mm )
Flow Range : 75-750 L/M
Vol Per Rotation : 1.839L
Pressure : 25 Bar
Tersedia dan siap dikirim
Jual Scraper Oil Analog Flow Meter SHM Size 3 Inch

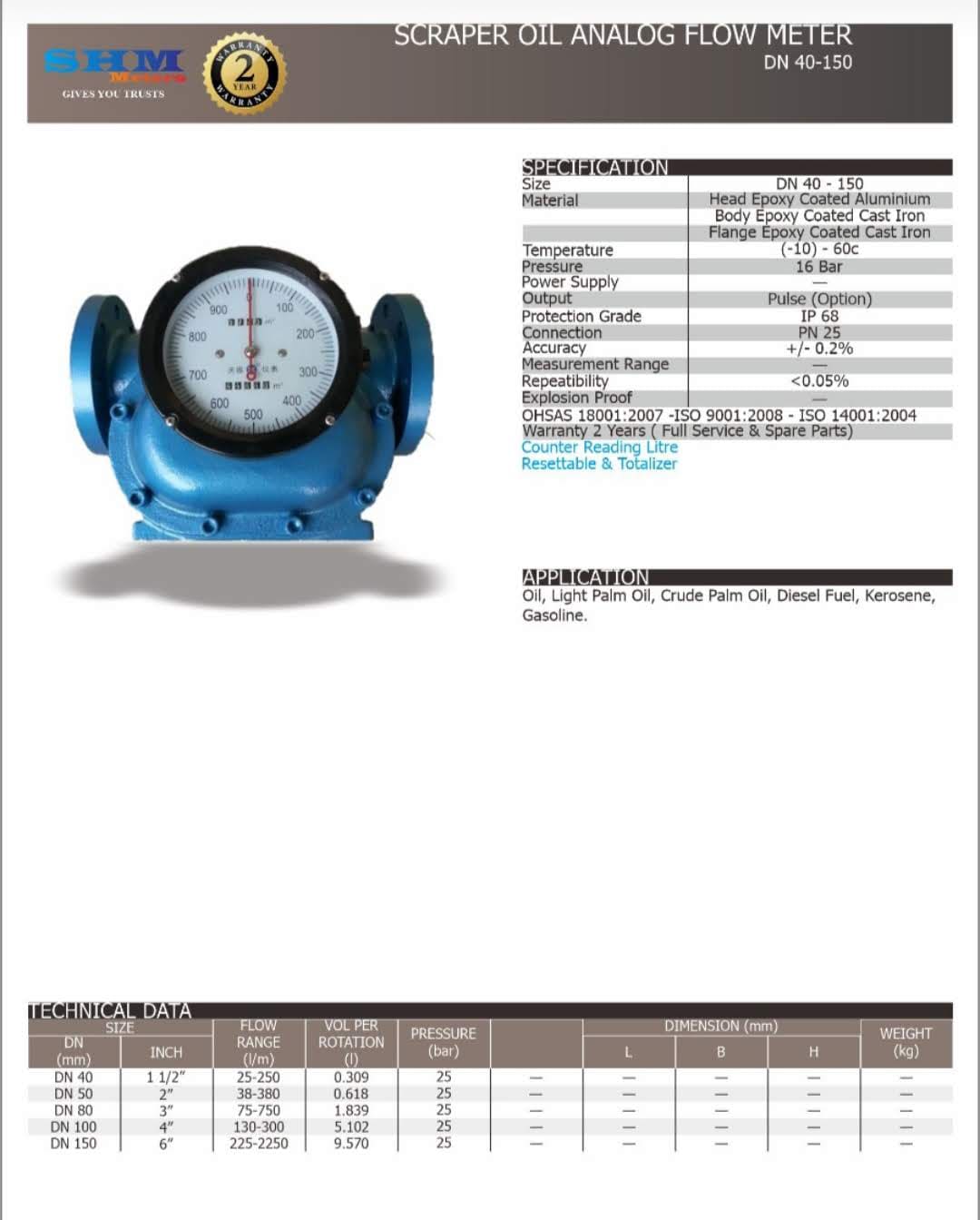

Scraper Oil Analog Flow Meter SHM
Size : DN 40-150
Material : Head Epoxy Coated Aluminium, Body Epoxy Coated Cast Iron, Flange Epoxy Coated Cast Iron
Temperature : (-10) - 60c
Pressure : 16 Bar
Power Suply : -
Output : Pulse ( Option )
Protection Grade : IP 68
Connection : PN 25
Accuracy : +/- 0.2%
Measurement Range : -
Repeatibility : < 0.05%
Explosion Proof : -
OHSAS 18001 : 2007 - ISO 9001: 2008 - ISO 14001 : 2004
Warranty 2 Years ( Full Service & Spare Parts )
Counter Reading Litre
Resettable & Totalizer
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
