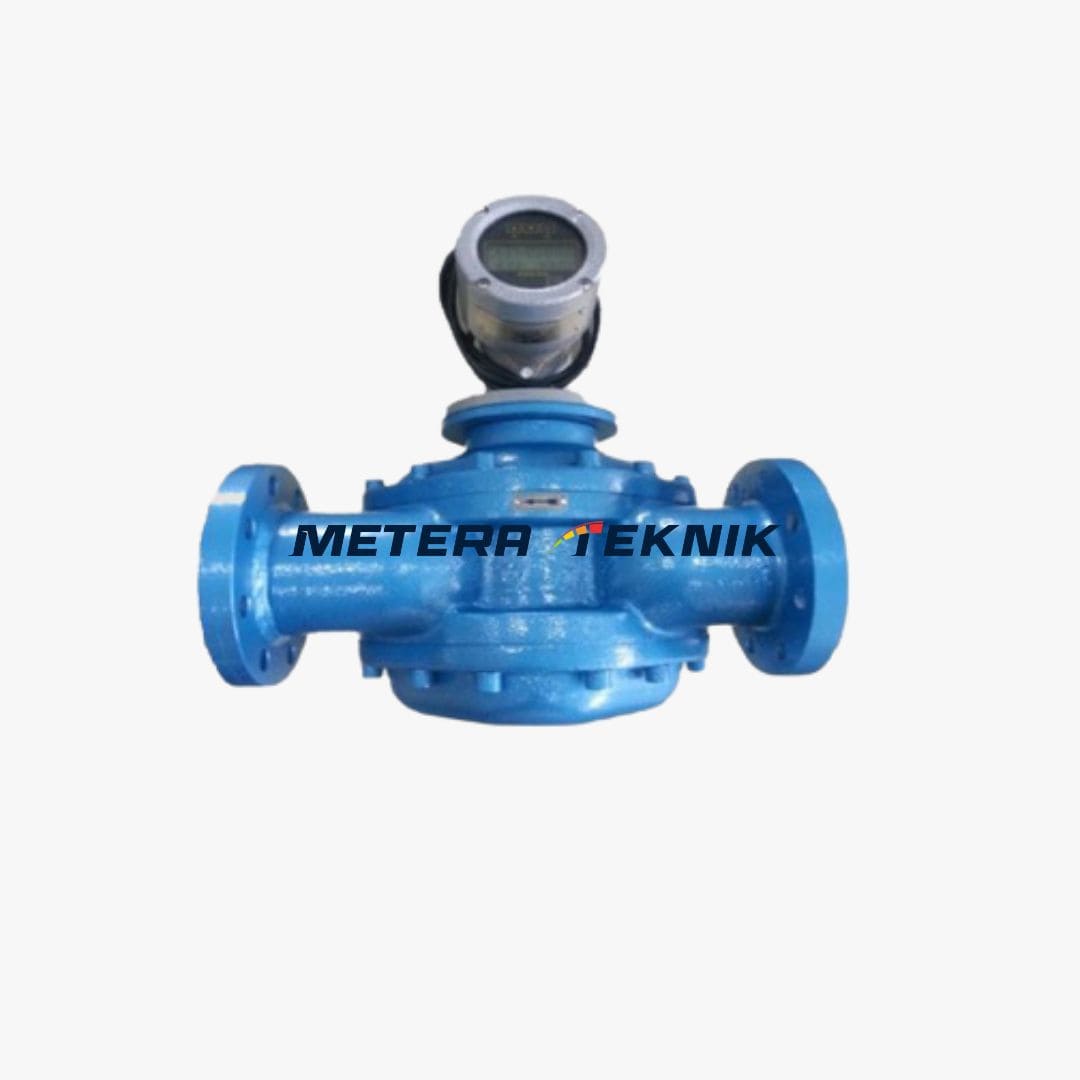

Jual Scraper Oil Digital Flow Meter SHM Size 1.5 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
Spesifikasi
Meter Size : 1.5 Inch ( DN 40mm )
Flow Range : 25-250 L/M
Vol Per Rotation : 0.309L
Pressure : 25 Bar
Tersedia dan siap dikirim
Jual Scraper Oil Digital Flow Meter SHM Size 1.5 Inch
Scraper Oil Digital Flow Meter SHM
Size : DN 40-150
Material : Head Epoxy Coated Aluminium, Body Epoxy Coated Cast Iron, Flange Epoxy Coated Cast Iron
Temperature : (-10) - 60c
Pressure : 16 Bar
Power Suply : 24 VCD
Output : Pulse / 4-20 mA / RS485
Protection Grade : IP 68
Connection : PN 25
Accuracy : +/- 0.2%
Measurement Range : -
Repeatibility : < 0.05%
Explosion Proof : -
OHSAS 18001 : 2007 - ISO 9001: 2008 - ISO 14001 : 2004
Warranty 2 Years ( Full Service & Spare Parts )
Counter Reading Litre
Resettable & Totalizer
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
