Jual SHM Multi Jet Brass Flow Meter Size 1 1/2 Inch
Informasi Produk
Spesifikasi :
APPLICATION
SHM Multi Jet Brass Flow meters can be used for:
-Irrigations ,colling system,Filtration System, Water Monitoring, Residentials, etc.
Tersedia dan siap dikirim
Jual SHM Multi Jet Brass Flow Meter Size 1 1/2 Inch

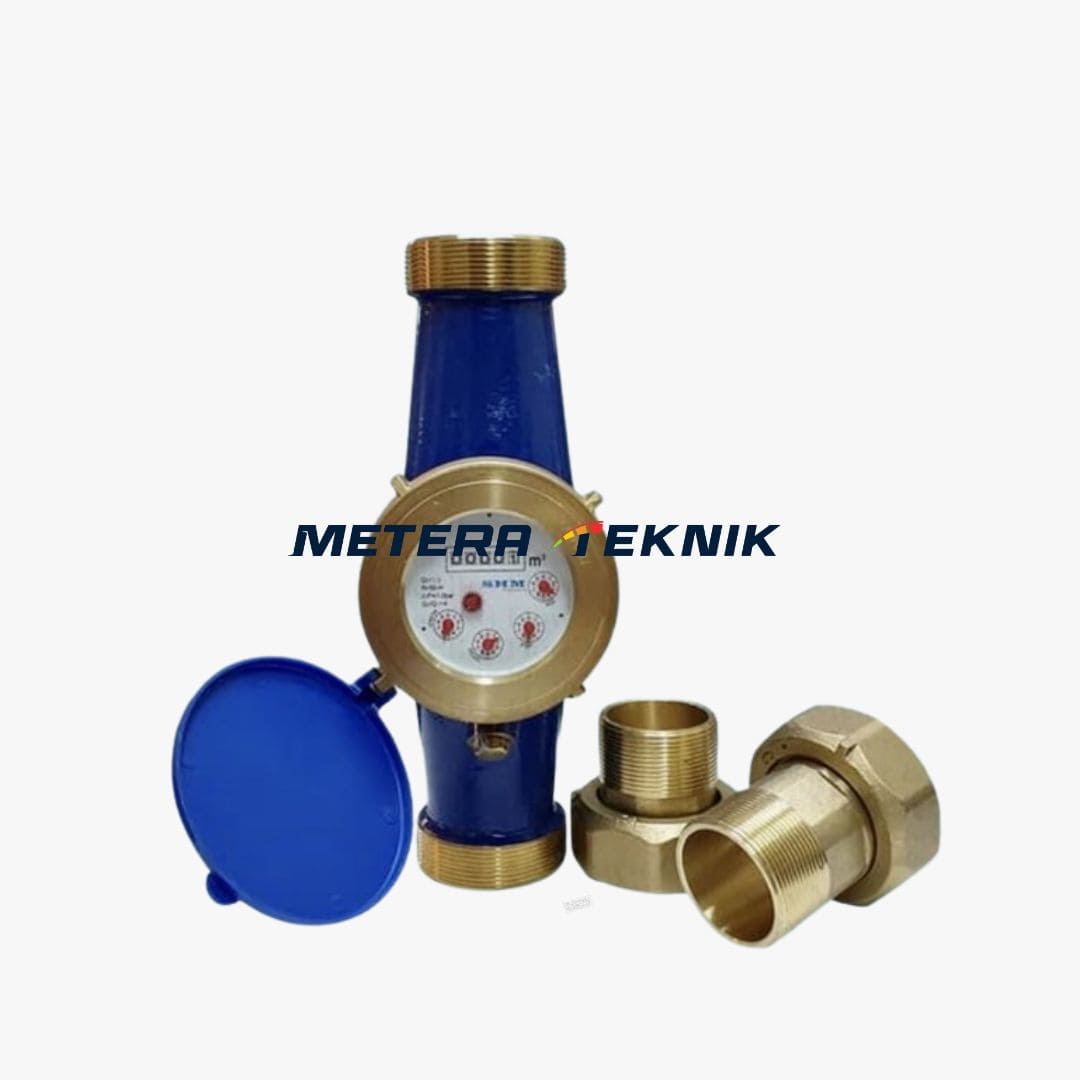

SHM Multi Jet Brass Flow Meter
Analog /Mechanical Multi Jet Brass Vane Whell Dry Dial Clean Water Mater Cold 50" C Hot 90° C Size DN 50 (1/2"-2").
DESCRIPTION
SHM Multi Jet Brass Flow Meters :Analog/ mechanical Flow Meter For Clean Water are made from brass material with vane wheel trasmitting water flow into central gear in the vaccum sealed register by the magnetic couping.
APPLICATION
SHM Multi Jet Brass Flow meters can be used for:
-Irrigations ,colling system,Filtration System, Water Monitoring, Residentials, etc.
FEATURES
- Multi Jet, Dry Dial, Turbine Type, Magnetic Drive.
- Pulse Output Optional.
- Vacuum Sealed Register ensures the dial keep free from fog and frost, keep the reading clear in a long term service.
- Working Temperature D.1-50° C for cold Water and 0.1-90° C for Hot Water.
- Water Pressure </=1.0 Mpa or 1.6 Mpa.
- Proctection Grade :IP 68.
- Maximum Permissible Error:
(1) In the lower zone from Qmin inclusive up to and Qs is +/-2%. For Hot water +/-3%
- ISO 9001 & ISO 4064.
- Warranty 2 Years (Full Services & Spare parts).
