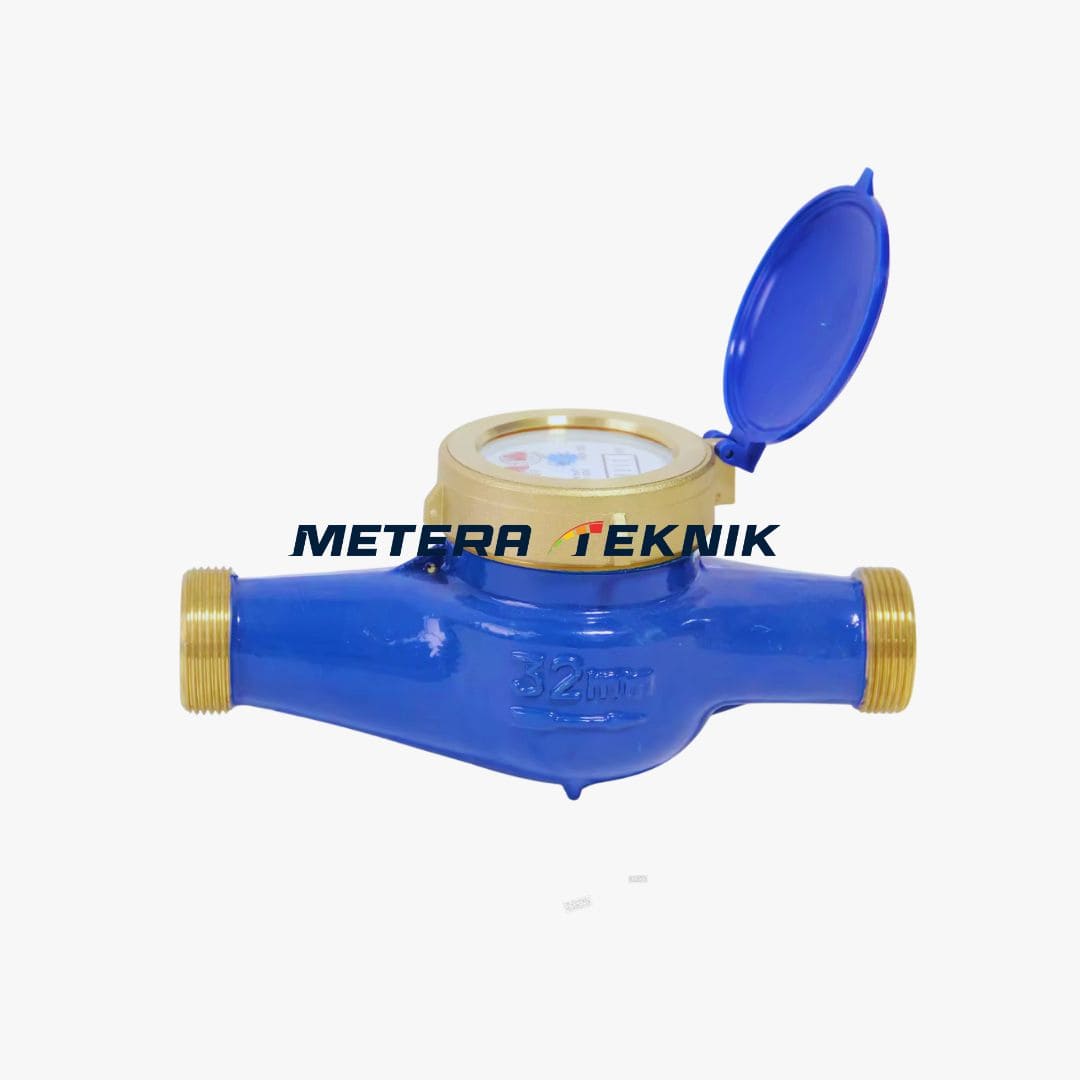

SHM Multi Jet Brass Flow Meter DN32-1 1/4 Inch
Product information
SHM Multi Jet Brass Flow Meter 1 1/4 Inch adalah alat ukur aliran air analog/mekanis berbahan kuningan yang dirancang untuk air bersih, baik dingin (hingga 50°C) maupun panas (hingga 90°C). Menggunakan teknologi multi-jet, dry dial, dan magnetic drive, flowmeter ini memastikan pembacaan akurat dan tahan lama. Ideal untuk aplikasi irigasi, sistem pendingin, filtrasi, monitoring air, dan kebutuhan residensial. Analog /Mechanical Multi Jet Brass Vane Whell Dry Dial Clean Water Mater Cold 50" C Hot 90° C Size DN 50 (1/2"-2").
APPLICATION
- Irrigations ,colling system,Filtration System, Water Monitoring, Residentials, etc.
FEATURES
- Multi Jet, Dry Dial, Turbine Type, Magnetic Drive.
- Pulse Output Optional.
- Vacuum Sealed Register ensures the dial keep free from fog and frost, keep the reading clear in a long term service.
- Working Temperature D.1-50° C for cold Water and 0.1-90° C for Hot Water.
- Water Pressure </=1.0 Mpa or 1.6 Mpa.
- Proctection Grade :IP 68.
- ISO 9001 & ISO 4064.
- Warranty 2 Years (Full Services & Spare parts).
Spesifikasi Produk
- DN: 32
- INCH: 1 1/4"
- QS (Overload Flow): 12 m3/h
- QP (Permanent Flow): 6 m3/h
- QT (Transitional Flow): 480 L/h
- QMIN (Minimum Flow): 120 L/h
- R (Maximum Reading): 0.0005-99.999
- L (Length): 260 mm
- B (Width): 103.5 mm
- H (Height): 124 mm
- Weight: 2.68 kg
- Connecting Thread: G 1 1/2 B
