Jual Spiral Rotor Analog Flow Meter SHM Size 4 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
Spesifikasi
Meter Size : 4 Inch ( DN 100mm )
Flow Range (m3/h)
Gasoline
(0.3-2 mPa.s) : 25-140
Diesel Fuel
(2-5 mPa.s) : 18-180
High VIS Fluid
(400-2000 mPa.s) : 7-65
Weight : 146
Tersedia dan siap dikirim

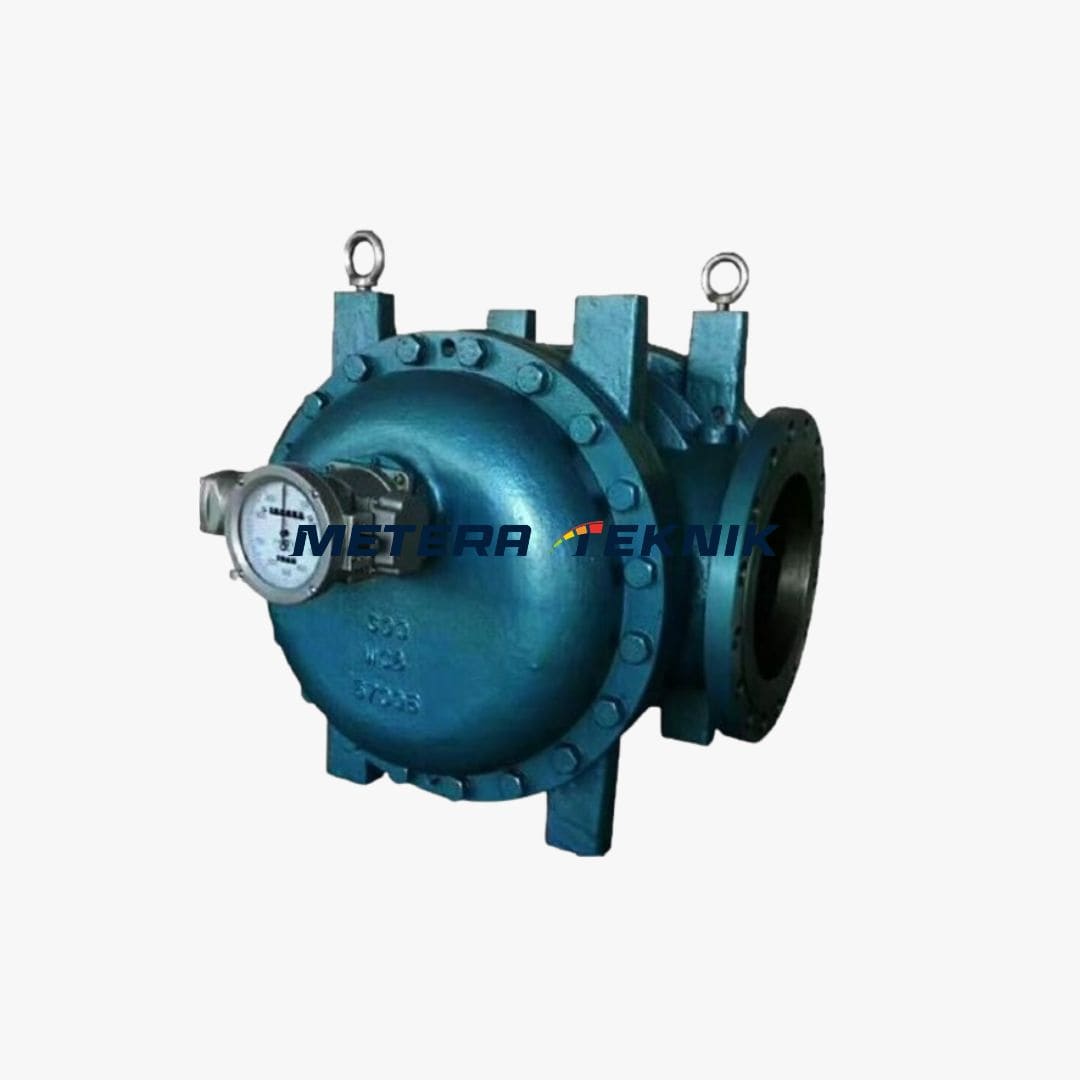

Jual Spiral Rotor Analog Flow Meter SHM Size 4 Inch

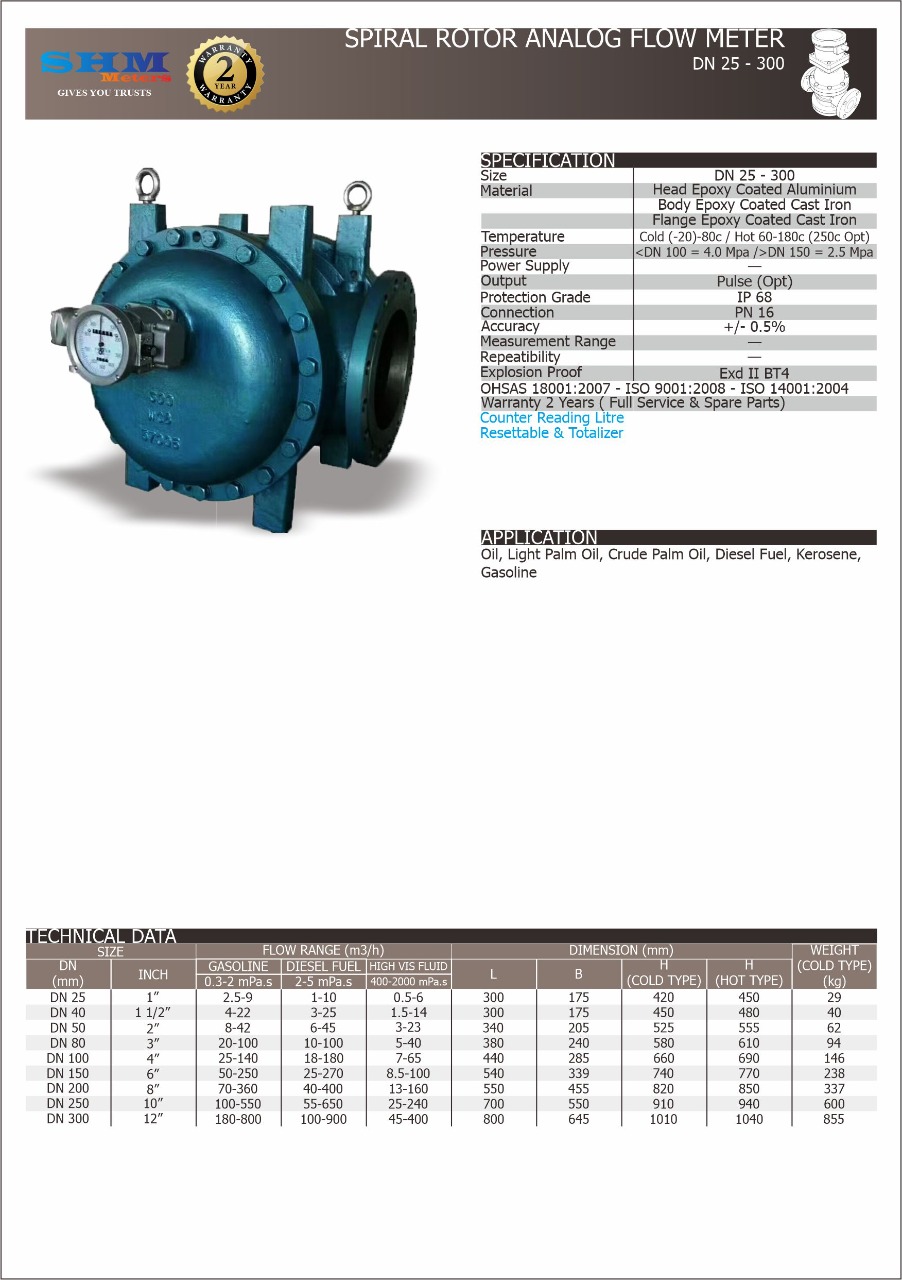

Spiral Rotor Analog Flow Meter SHM
Specifications :
Size : DN 25-300
Material : Head Epoxy Coated Aluminium, Body Epoxy Coated Cast Iron, Flange Epoxy Coated Cast Iron
Temperature : Cold ( -20 )-80c / Hot 60-180c ( 250c Opt )
Pressure : <DN 100 = 4.0 Mpa / >DN 150 = 2.5 Mpa
Power Suply : -
Output : Pulse ( Opt )
Protection Grade : IP 68
Connection : PN 16
Accuracy : +/- 0.5%
Measurement Range : -
Repeatibility : -
Explosion Proof : Exd ll BT4
OHSAS 18001 : 2007 - ISO 9001: 2008 - ISO 14001 : 2004
Warranty 2 Years ( Full Service & Spare Parts )
Counter Reading Litre
Resettable & Totalizer
APPLICATION
Oil, Light Palm Oil, Crude Palm Oil, Diesel Fuel, Kerosene, Gasoline
