Jual Turbine Digital Flow Meter SHM Size 2 1/2 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Liquid with kinematic viscosity under 5x10m2/s and have no impurity of fiber, grain, etc.
Tersedia dan siap dikirim
Jual Turbine Digital Flow Meter SHM Size 2 1/2 Inch

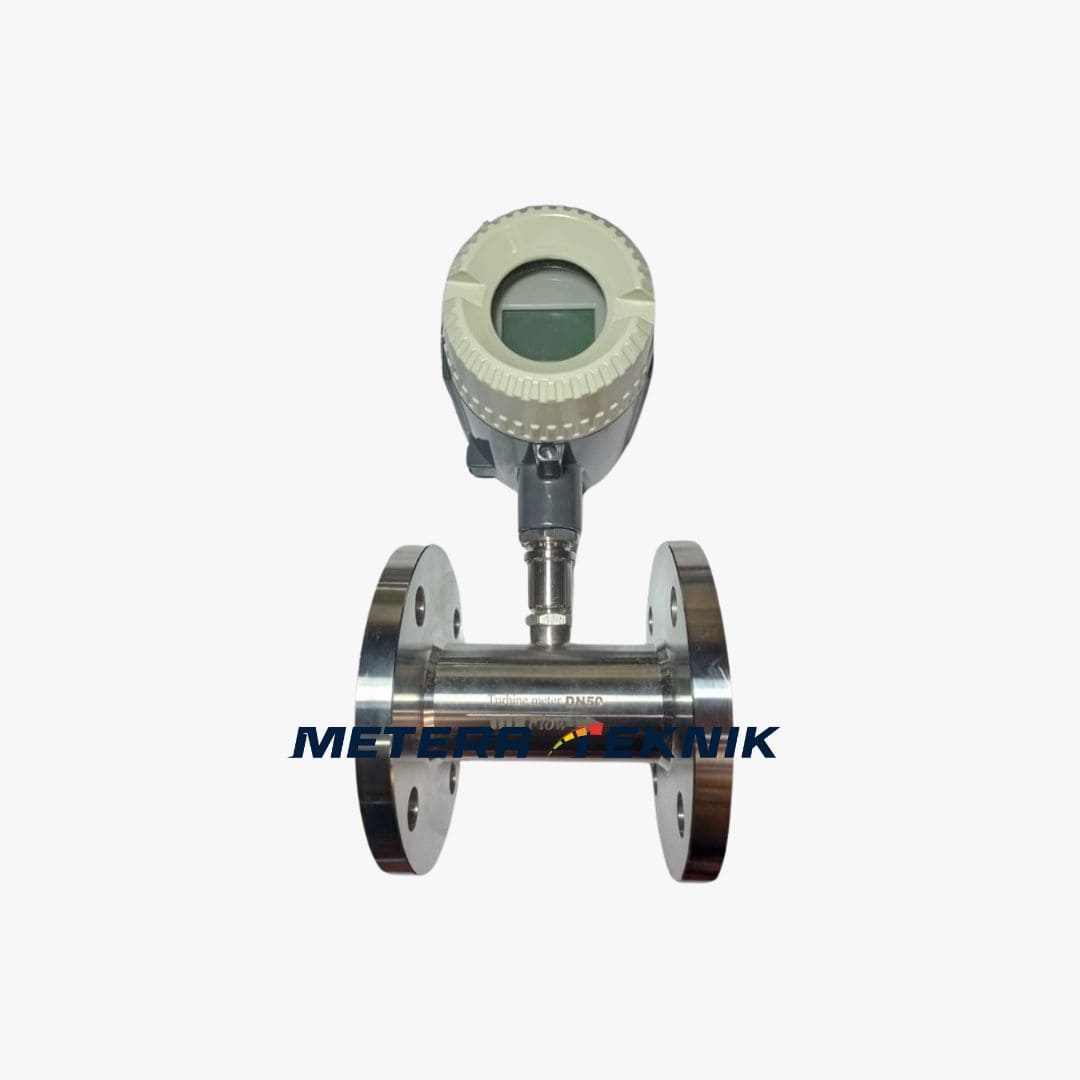

Turbine Digital Flow Meter SHM Model Flange
SPECIFICATION
-Size : DN4-300
-Material : Body & Rotor SS316L Head Epoxy Coated Aluminium Flange SS316L
-Temperature : 0-100c
-Pressure : 16 Bar
-Power Supply : 24 VDC
-Output : RS 485 / 4-20mA / Pulse
-Protection Grade : IP 65
-Connection : Flange ( FL ) PN 16
-Accuarcy : 0.5%
-Measurement Range : 1:10 / 1:15 / 1:20
-Repeatibility : 0.05-2%
-Explosion Proof : Exd II BT4
-Warranty 2 Years ( Full Service & Spare Parts )
APPLICATION
Liquid with kinematic viscosity under 5x10m2/s and have no impurity of fiber, grain, etc.
