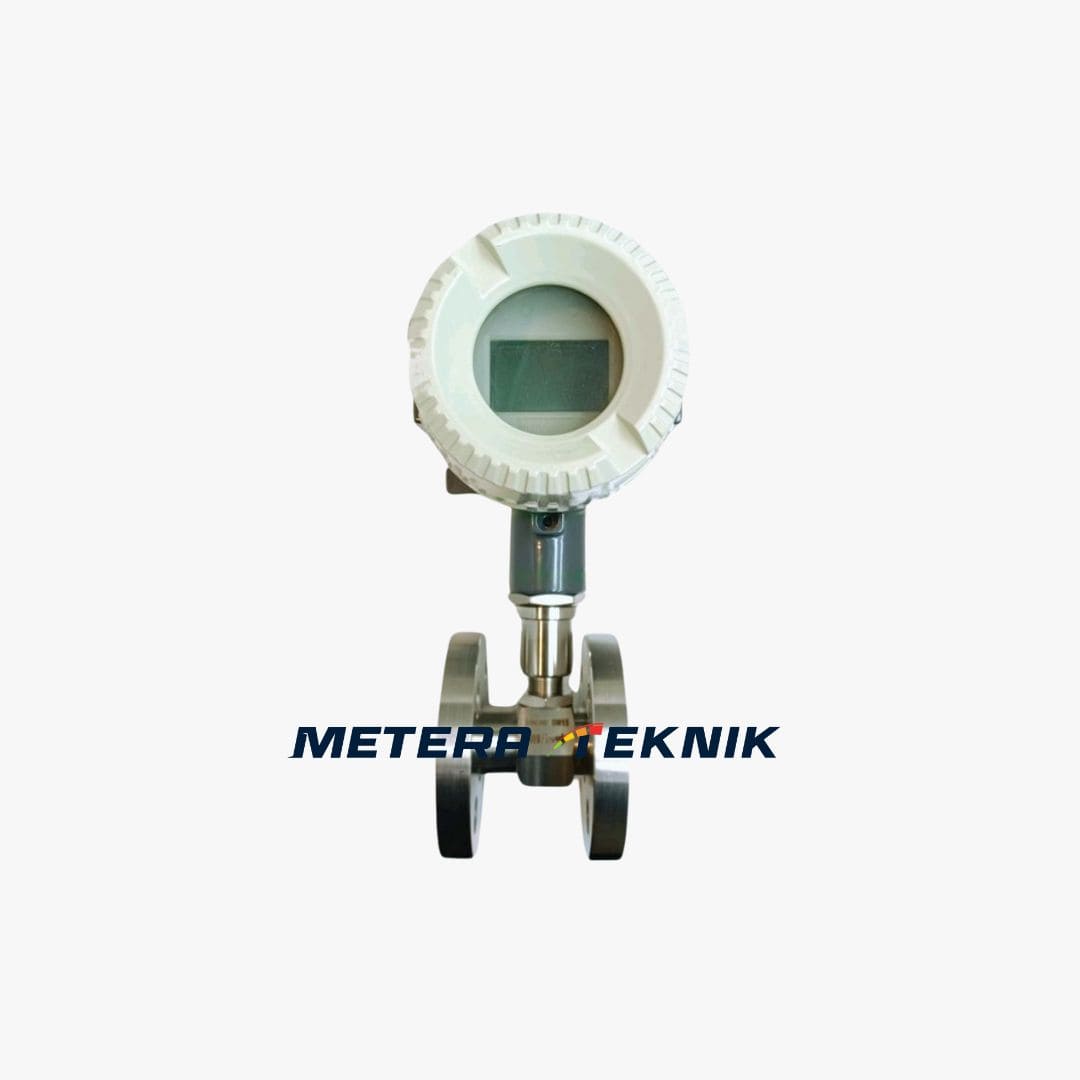

Jual Turbine Digital Flow Meter SHM Size 3/4 Inch
Product information
The Turbine Digital Flow Meter SHM Size 3/4 Inch is a precision flow meter for industrial applications. Made of robust 316L Stainless Steel, this flow meter features a multi-blade rotor mechanism that ensures reliable and repeatable flow measurement and flow accumulation. Its simple and lightweight structure makes installation and maintenance easy, with a high accuracy of 0.5% and a repeatability of 0.05-2%. Suitable for fluids with a kinematic viscosity below 5x10m²/s and free from impurities, this flow meter is ideal for various industrial needs. With RS485, 4-20mA, and pulse outputs, it integrates seamlessly with control systems. Backed by a 2-year warranty, this product offers reliable durability and performance.
APPLICATION:
Liquid with kinematic viscosity under 5x10m2/s and have no impurity of fiber, grain, etc.
Spesifikasi Produk
- Size : DN4-300
- Material : Body & Rotor SS316L Head Epoxy Coated Aluminium Flange SS316L
- Temperature : 0-100c
- Pressure : 16 Bar
- Power Supply : 24 VDC
- Output : RS 485 / 4-20mA / Pulse
- Protection Grade : IP 65
- Connection : Flange ( FL ) PN 16
- Accuarcy : 0.5%
- Measurement Range : 1:10 / 1:15 / 1:20
- Repeatibility : 0.05-2%
- Explosion Proof : Exd II BT4
- Warranty 2 Years ( Full Service & Spare Parts )
