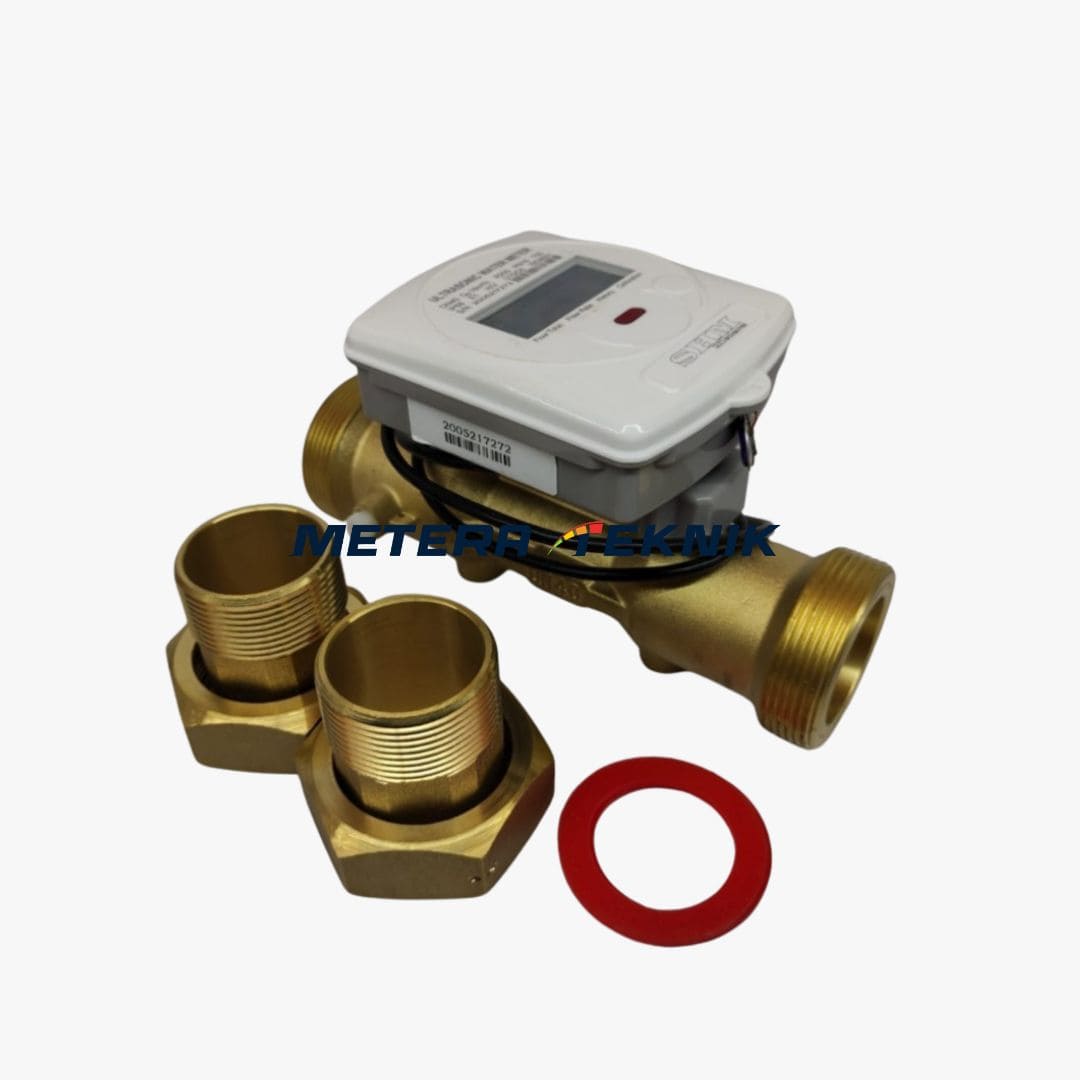

Jual Ultrasonic Screw Flow Meter SHM Size 1/2 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Ultrasonic Srew Flow Meter
Spesifikasi
Meter Size : 1/2 Inch ( DN 15mm )
Connection : Screw
Pressure ( Mpa ) : 1.6
Flow Range ( m3/h)
Min flow : 0.0125
Max Flow : 3.125
Weight : 2.3 Kg
Tersedia dan siap dikirim
Jual Ultrasonic Screw Flow Meter SHM Size 1/2 Inch
Ultrasonic Screw Flow Meter DN 15 - 40
SPECIFICATION
-Size : DN 15 - 40
-Material : Body Brass Head ABS
-Temperature : 0-50c
-Pressure : 16 Bar / 25 Bar ( Opt )
-Power Supply : Battery 3.6V
-Output : Pulse / 4 -20 mA / RS 485
-Protection Grade : IP 68
-Connection : Screw
-Accuaracy : -
-Measurement Range : -
-Repeatibility : -
-Explosion Proof : -
ISO 4064 GBT 778.1-2007 , JJG 162-2009
Warranty 2 Years ( Full Service & Spare Parts )
Power Consumption <2.7 AH / Yer
APPLICATION
Water , Filtered Water , Sea Water , Sewage
