Jual Vane Flange Flow Meter SHM Size 1.5 Inch
Informasi Produk

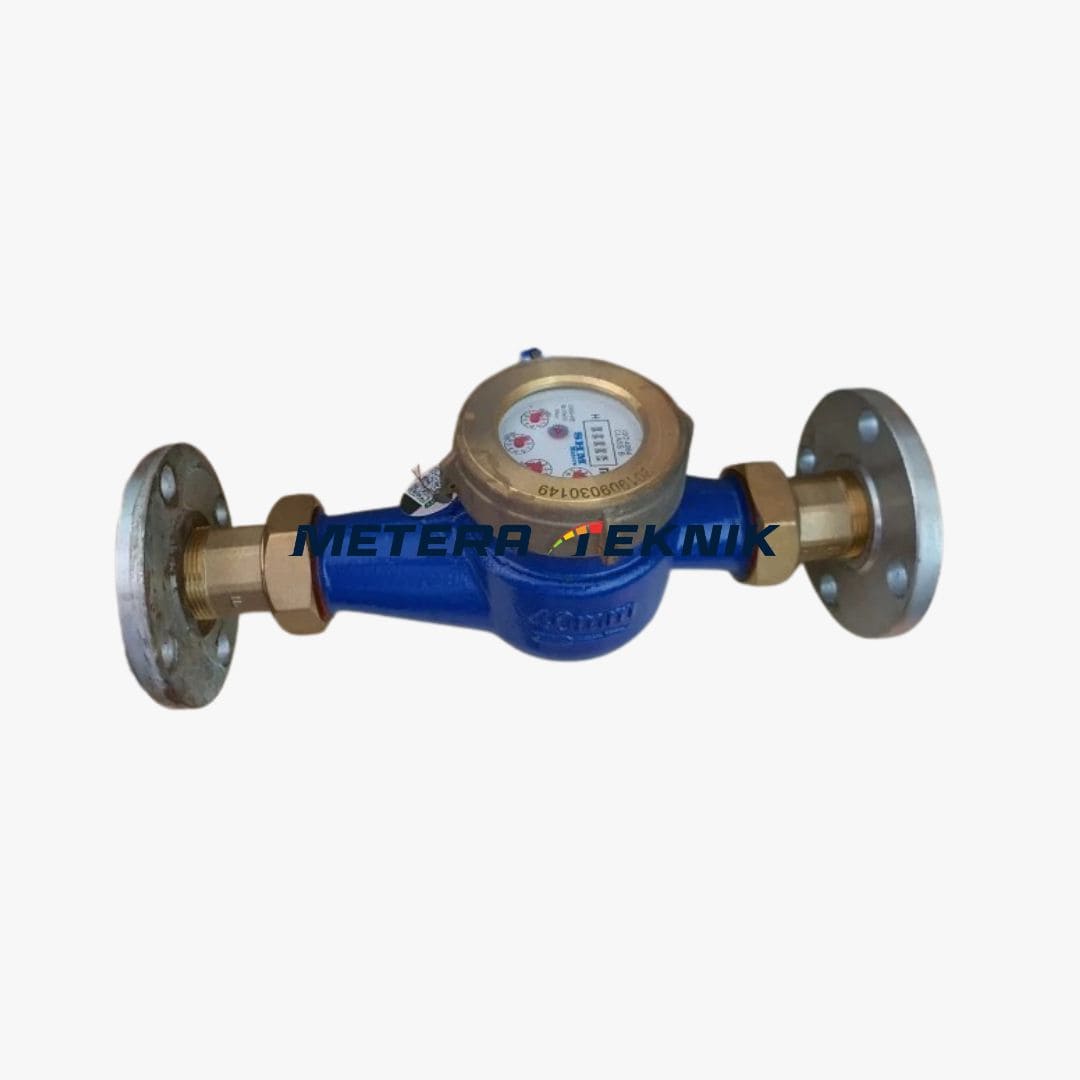

Vane Flange Cast Iron Flow Meter SHM
Meter Size : 1.5 Inch ( DN 40mm )
Flow Range L/H :
Q1 : 0.35
Q2 : 1
Q3 : 10
Q4 : 20
Weight : 6 KG
Jual Vane Flange Flow Meter SHM Size 1.5 Inch
Vane Flange Cast Iron Flow Meter SHM
Size : DN 40-50
Material : Body Epoxy Coated Cast Iron / Flange Epoxy Coated Cast Iron
Temperature : Cold Water 0-50 Deg C
Presure : 16 Bar
Power Suplay : -
Output : -
Protection Grade : IP 68
Conection : Screw + Flange PN 16
Accuracy : +/-2%
Measurement Range : -
Repeatibilty : -
Explosion Proof : -
ISO : 4064
