Jual Vane Flange Flow Meter SHM Size 2 Inch

Jual Vane Flange Flow Meter SHM Size 2 Inch

Product information

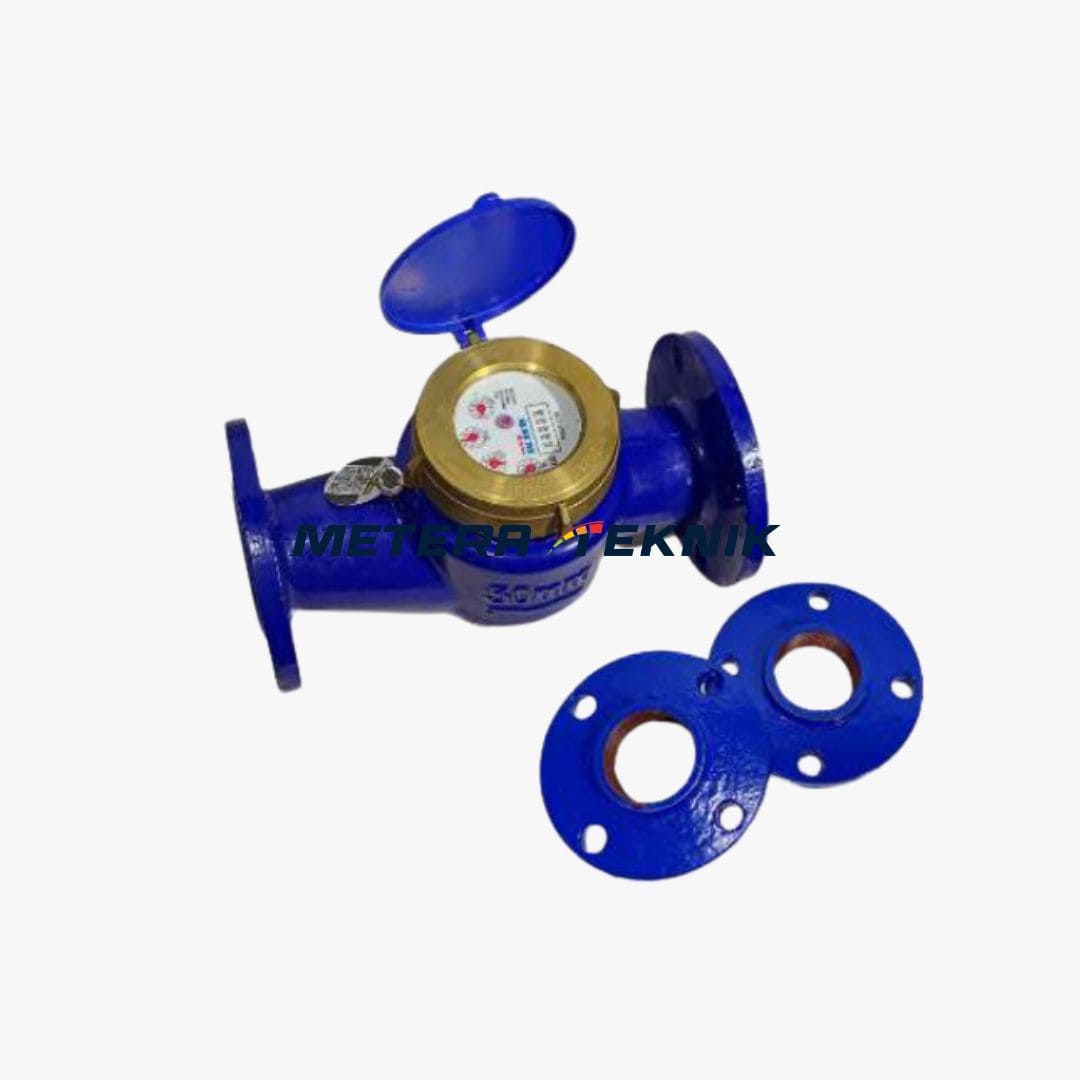

SHM Vane Flange Cast Iron Watermeter DN50 (2") adalah flowmeter air bersih mekanikal/analog. Terbuat dari besi cor dengan lapisan cat epoxy antikarat tebal dan display kaca bening. Dengan akurasi ±2%, rating IP68 untuk ketahanan debu dan air , serta tekanan kerja 16 bar, unit ini ideal untuk berbagai aplikasi air bersih. Telah melalui tera pabrik dan bersertifikasi ISO 9001 & ISO 4064 , watermeter SHM memberikan jaminan kualitas dan garansi 2 tahun (full Service & Parts)

Spesifikasi Produk

  • Meter Size : 1.5 Inch ( DN 40mm )
  • Material : Body Epoxy Coated Cast Iron / Flange Epoxy Coated Cast Iron
  • Temperature : Cold Water 0-50 Deg C
  • Presure : 16 Bar
  • Power Suplay : -
  • Output : -
  • Protection Grade : IP 68
  • Conection : Screw + Flange PN 16
  • Accuracy : +/-2%
  • Measurement Range : -
  • Repeatibilty : -
  • Explosion Proof : -
  • ISO : 4064
  • Flow Range L/H : Q1 : 0.35 | Q2 : 1 | Q3 : 10 | Q4 : 20
  • Weight : 12 KG
