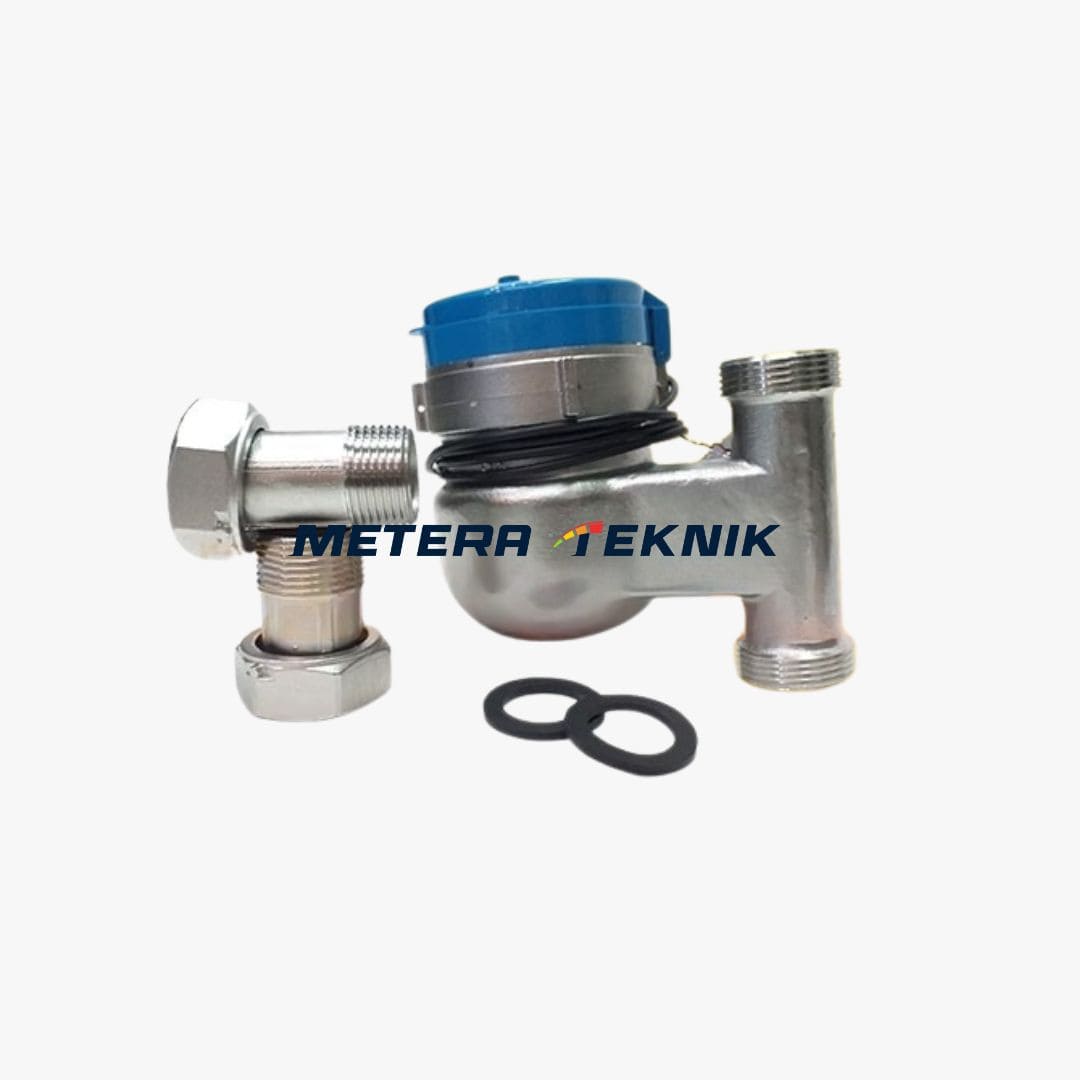

Jual Vertical Flow Meter SHM SS316L Screw Size 1 1/4 Inch
Informasi Produk
Spesifikasi :
APPLICATION
Water , Sea Water , Corrosive , Chemical , Food Grade
Spesifikasi
Meter Size : 1 1/4 Inch ( DN 32mm )
Minimum Flow : 0.12
Flow Range ( m3/h )
Transitional Flow : 0.48
Continuous Flow : 6
weight : 2.7 Kg
Tersedia dan siap dikirim
Jual Vertical Flow Meter SHM SS316L Screw Size 1 1/4 Inch
Vertical Flow Meter SS316L Screw DN 15-25
SPECIFICATION
-Size : DN 15-25
-Material : Body SS316L Head SS316L
-Temperature : Cold 0-50c / Hot 0 -130c
-Pressure : 16 Bar
-Power Supply : -
-Output : Pulse ( Option )
-Protection Grade : IP 68
-Connection : Screw
-Accuracy : + / -2 %
-Measurement Range : -
-Repeatibility : -
-Explosion Proof : -
ISO 9001 & ISO 4064
Warranty 2 Years ( Full Service & Spare Parts ) 4 Variant Available : Cold Pulse / Hot / Hot Pulse
APPLICATION
Water , Sea Water , Corrosive , Chemical , Food Grade
