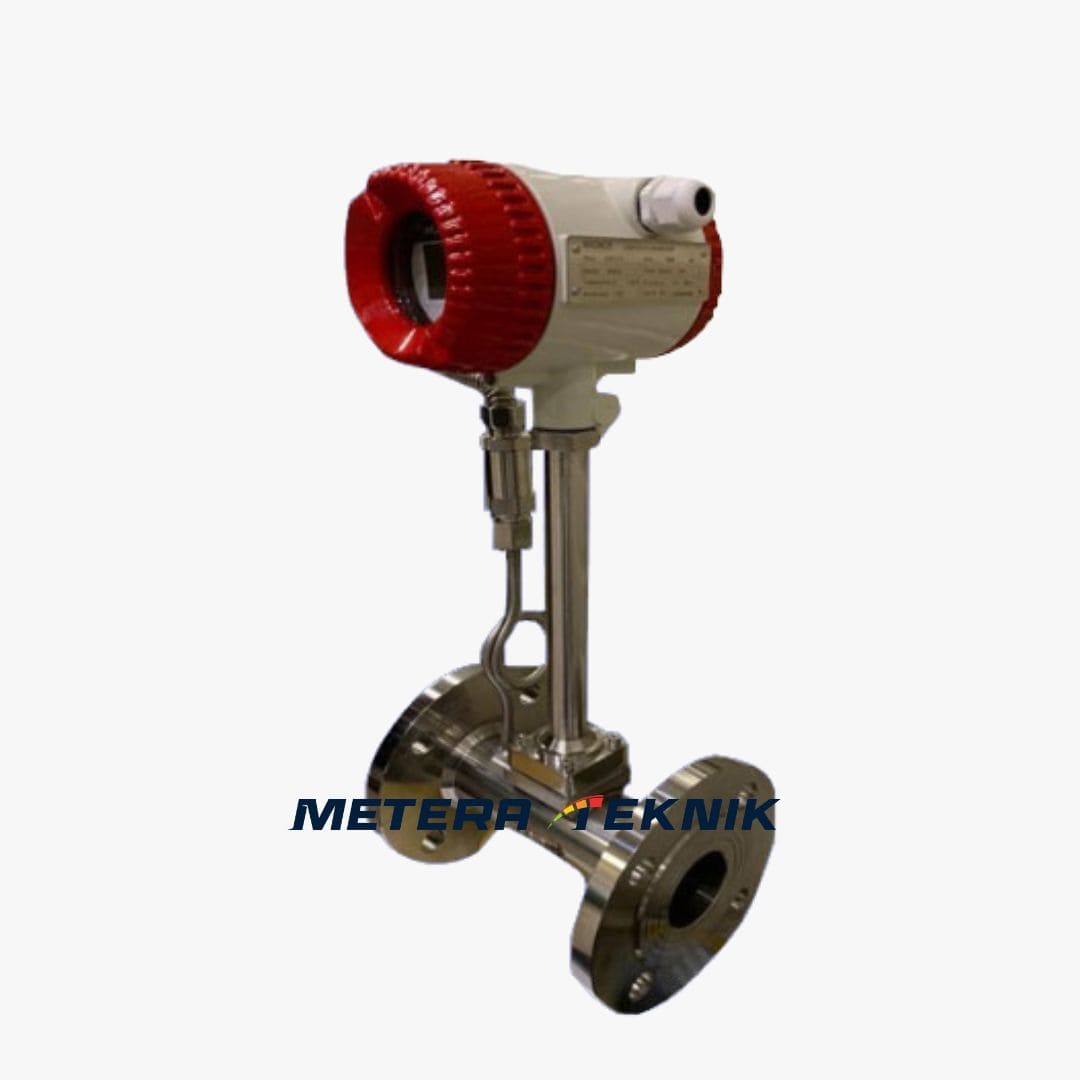

Jual Vortex Flow Meter Magnos Size 1/2 Inch

Name: Jual Vortex Flow Meter Magnos Size 1/2 Inch
Brand: Flow Meter MAGNOS
Availability: InStock

Spesifikasi :

Vortex Flow Meter Magnos Size 1/2 Inch

Liquid And Air Flow Range Table (m3/h)

Liquid (m3/h)

Meter Size : 1/2 Inch (DN 15 mm)

ModeL : MGS -VTX

-Standart Range : 0.8-6

-Extended Range : 0.5-8

Air (m3/h)

-Standart Range : 6-40

-Extended Range : 5-50

Saturated Stream Mass Flow Range Table (kg/h)

Absolute Pressure ( Mpa )

-0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.4, 1.6, 1.8, 2.

Temperature (°C)

-120.2, 133.5, 143.62, 151.84, 164.96, 170.41, 175.36, 179.68, 187.96, 195.04, 201.37, 207.11, 212.37.

Density (kg/m3)

-1.129, 1.651, 2.163, 2.669, 3.17, 3.667, 4.162, 4.665, 5.147, 6.127, 7.106, 8.085, 9.065, 10,05.

Akses Katalog Sekarang

Tersedia dan siap dikirim

Jual Vortex Flow Meter Magnos Size 1/2 Inch

Magnos Vortex Flow Meter

Introduction

Vortex flowmeter works on the karman vortex street principle that swirls generated by a bluff body in the pipe.the number of swirls are proportional to the volumetric flow in pipe. Vortex flow meter widely used for gases, steam and liquid applications. it is ideal for measuring saturated and superheated steam in large facilitles to improve steam production effciency.

Principle

When the fluid in the pipeline the burble generator ( triangular prism ) , burble will generate due to the acceleration of partial flow rate. the burble will arise alernatively in two burble lines, which is called karman vortex.

Application

Application in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids : saturated steam, superheated steam, compressed air, nitrogen, liquefied gase, flue gases, carbon dioxide, fully dermineralized water, solvents, heat-transfer oils, boiler feedwater, condensate,etc.

Features

-Measured Medium : Liquid, Gas, Steam

-Medium Temperature : -40-250°C ( Optional 40-350°C )

-Nominal Pressure : 1.6Mpa, ( Optional : 2.5Mpa, 4.0Mpa )

-Accuracy + 1.5%

-Flow Range : Liquid : 0.4-7.0m/s;

: Gas 4.0-60.0m/s;

: Steam : 5.0-70.0m/s

-Specifications : DN15-DN300 ( Flange type )

: DN80-2000 ( Optional : insertion type )

-Material : SS 304 (Standard)

: SS 316 ( optional )
