Sesuai Standar ISO 4064

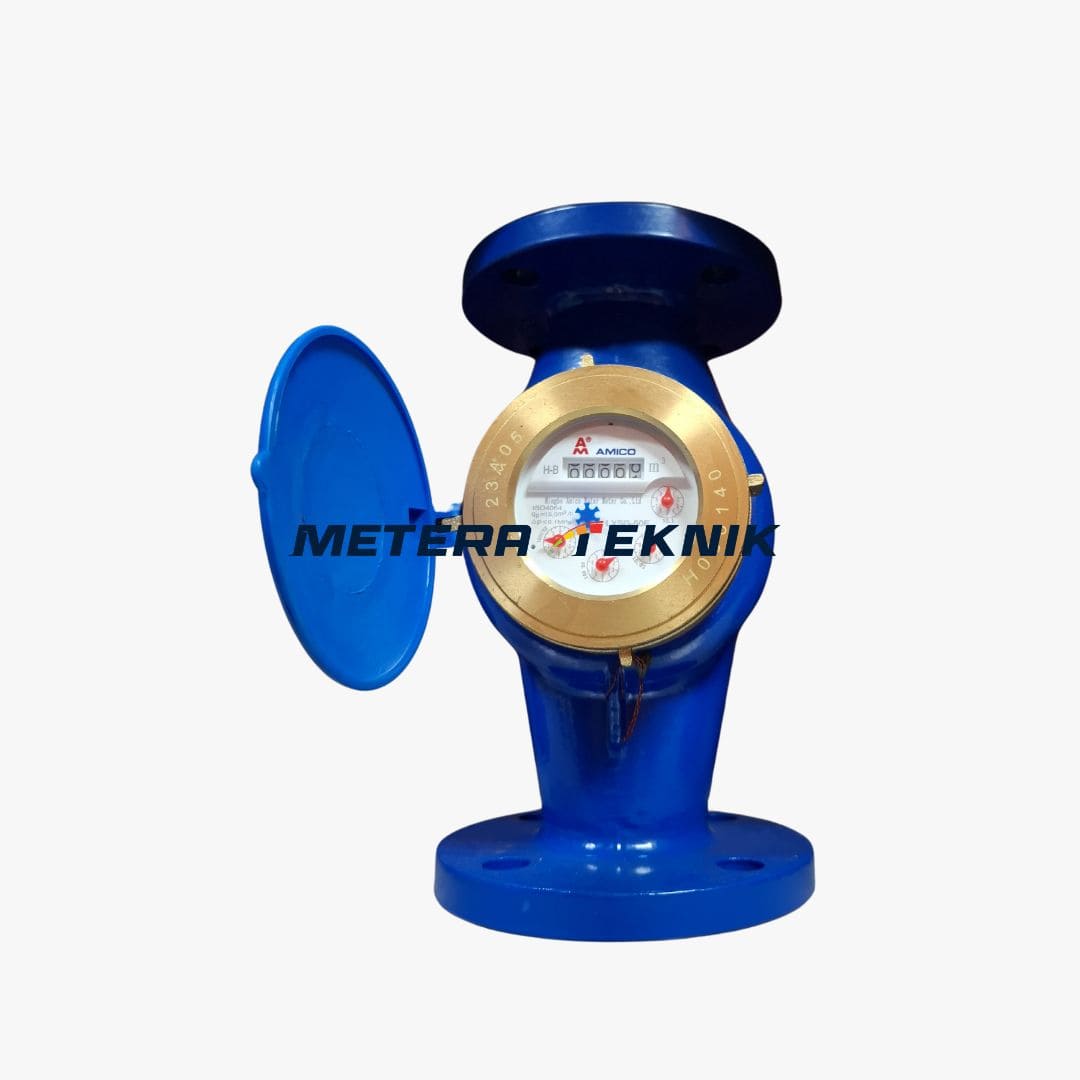

Tipe: LXSG-50E, Rotary-Wing Water Meter, Horizontal Woltman Type
Size: DN 50 (2 inch)
Tekanan kerja maksimum: 1 MPa (10 Bar)
Maximum Flow Rate (Q max.): 30 m³/h
Minimum Flow Rate (Qmin): 0.45m³/h
Nominal FLow Rate (Qn): 15m³/h
Transitional Flow Rate (Qt): 3m³/h
Max reading : 99999.9999m³
Min. reading: 0.0001m³
Temperature: ≤50ºC
Akurasi:
- Antara Qmax - Qt: ±2%
- Antara Qt - Qmin: ±5%
