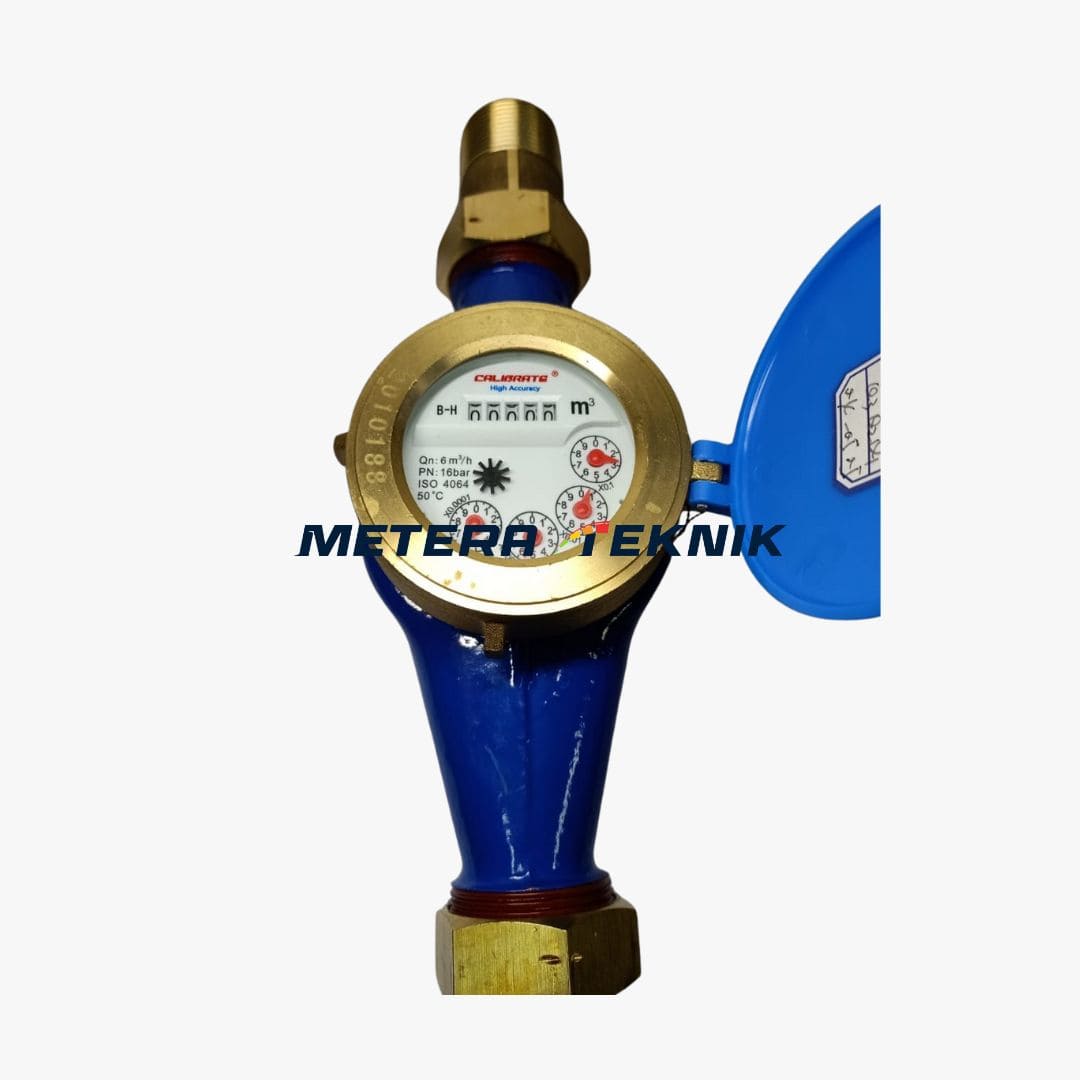

Jual Water Meter Multi Jet Brass Merk Calibrate Size 3/4 Inch
Informasi Produk
Spesifikasi :
Water Meter Multi Jet Brass Merk Calibrate
Optional Features
Register seale type : Dray Type Semi-Dray Type,Super-Dray Type
Accuracy R= 80,100,125,160
Cast Iron
Meter Size : 3/4 Inch ( DN 20 mm ) Screw
Type : LXSG-20 ( COLD WATER )
Q4 Overload Flow m3/h : 5
Q3 Permanent Flow m3/h : 4
Q2 Transitional Flow m3/h : 0.080
Q1 Minimum Flow m3/h : 0.050
Minimum Reading m3 : 0.00005
Maximum Reading m3 : 99, 999
Tersedia dan siap dikirim
Jual Water Meter Multi Jet Brass Merk Calibrate Size 3/4 Inch
CALIBRATE HIGH ACCURACY
Multi-Jet Vane Wheel Type
DRY - dial Brass Body Cold ( Hot ) Water Meters DN15 - 50 ( mm )
This type of water can be used for a remote reading transmission system as aquipped with a built-in sensor.
APPLICATION
-Measuring the volume of cold (hot ) water passing through the pipeline
FEATURE
-Multi - jet, dry dial, magnetic drive;
-Vaccum sealed register, frost registant, keeps clear reading for long time;
-Removable measuring unit and strong universality, easy installation and maintenance;
-Measuring high flowrate with low head loss, inner and outside adjustment is optional;
-Remote transmission device can be added upon request;such as reed Switch or Hall pulse output;
-Technical data conform to international standart ISO 4064.
Accressories:
2 pcs coupling, 2 pcs coupling nuts and 2 pcs washers.
WORKING CONDITION
-Water temperature : 0.1°C ~50°C for cold water meter 0.1°C ~90°C for hot water meter
-Water Pressure : PN10/16
-Pressure- loss class : p25
Maximum permissible errors
(1) From minimum flow - rate ( Q1 ) Inclusive to transitional
flow- rate ( Q2 ) exclusive + 5%
(2) From transitional flow-rate ( Q2 ) to overload flow - rate
( Q4 ) : + 2% ( Hot Water meter + 3 % )
