Jual Water Meter Taco Size 4 Inch
Informasi Produk
Spesifikasi :
Water Meter Taco
Type : LXLC - 100
Meter Size : 4 Inch ( DN 100 mm )
Q4 Overload Flow m3 / h
125
Q3 Permanent Flow m3/ h
100
Q2 Trastional Flow m3 / h
3.2
Q1 Minimum Flow m3 / h
2
Min. Reading m3
0.002
Max. Reading m3
999,999
Tersedia dan siap dikirim
Jual Water Meter Taco Size 4 Inch

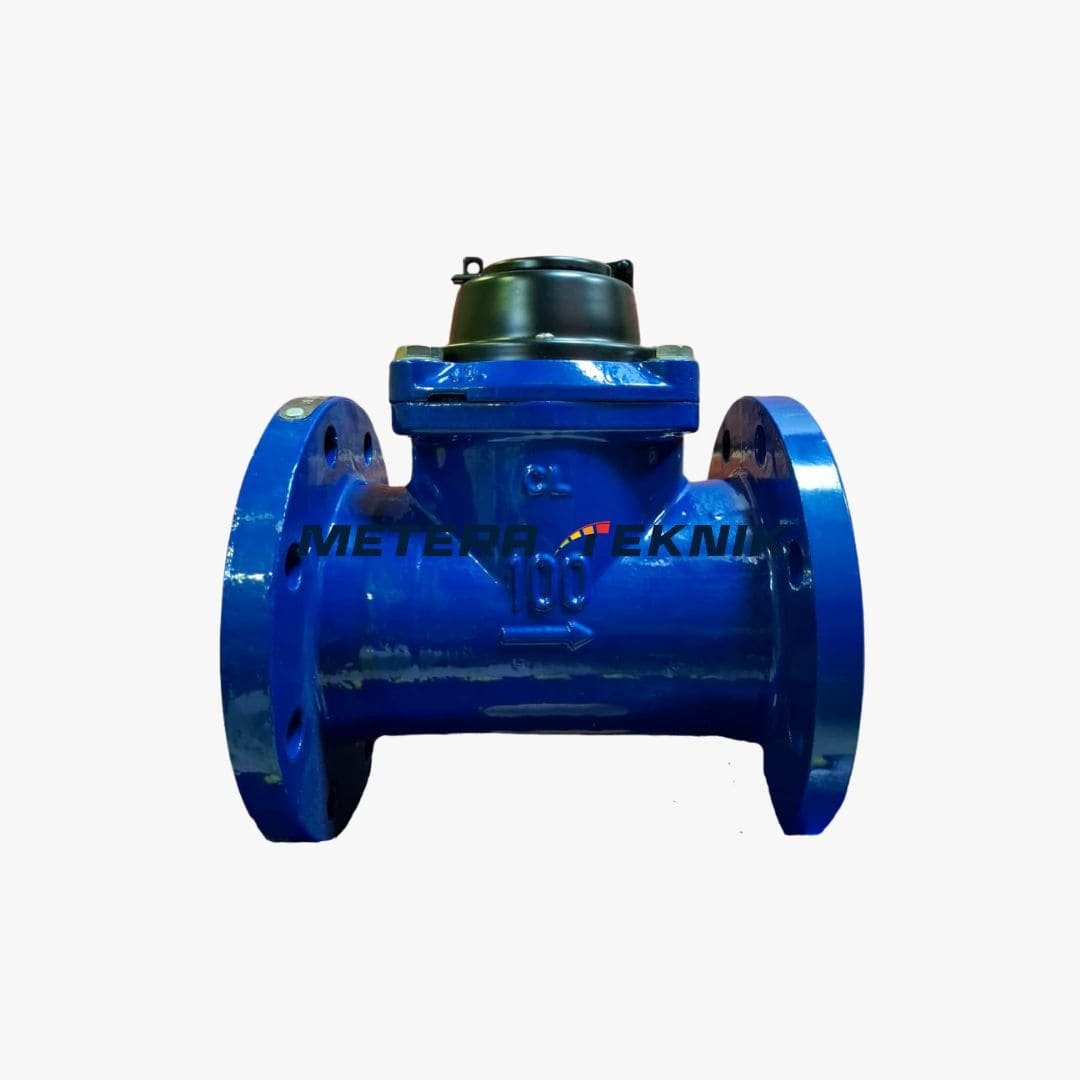

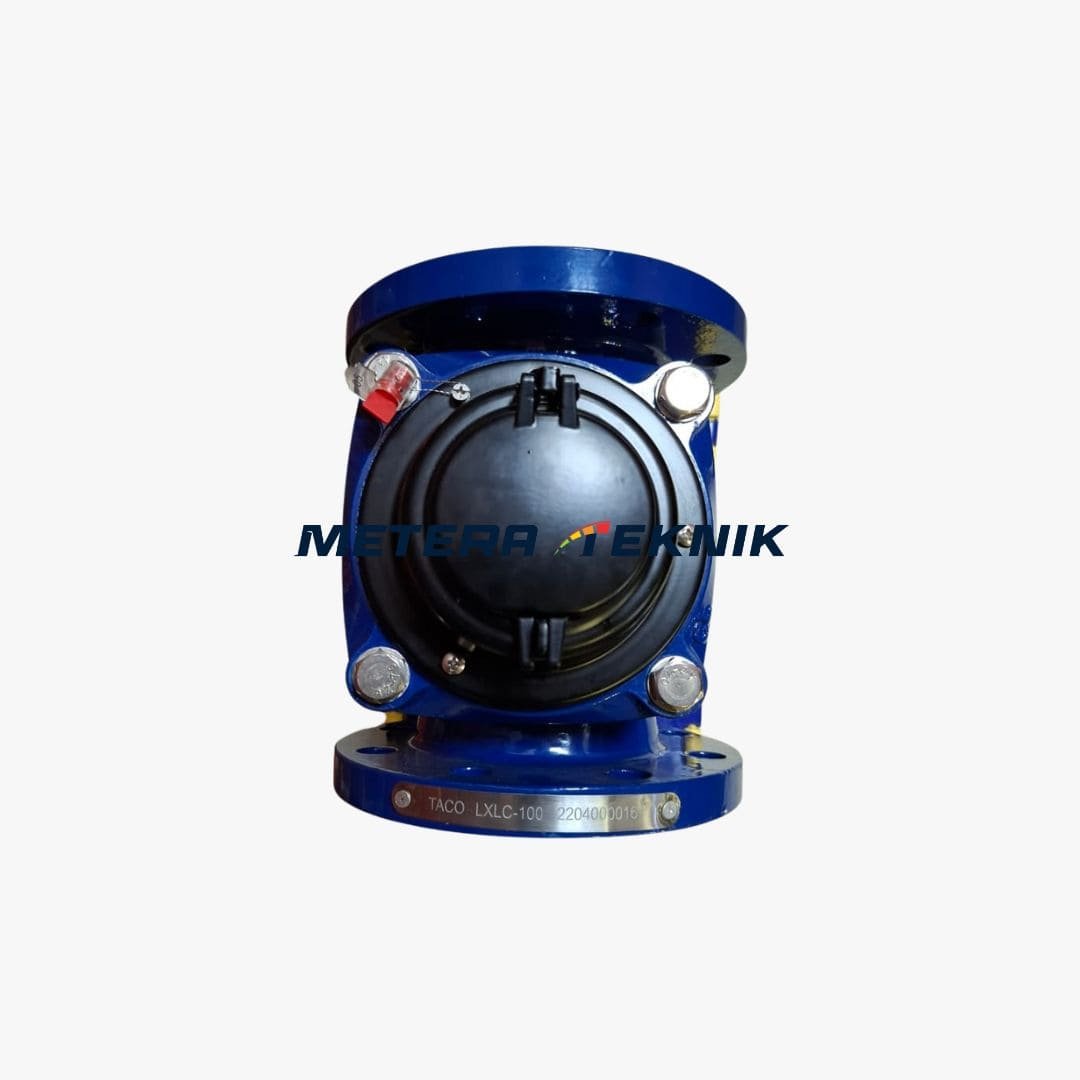

WATER METER TACO
Removable element woltman cold ( hot ) water meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
APPLICATION
-Measuring the volume of cold ( hot ) water passing through the pipeline
FEATURE
-Removable element structure, easy installation and maintenance, Register for universal use within this range detachable without Removing the meter from the pipeline;
-Dry-dial, Magnetic drive sensitive action, small pressure loss;
- Vaccum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
-Selected high quality materials for steady & reliable characteristic;
-Technical data conform to international standard ISO 4064.
WORKING CONDITION
-Water temperature : 0.1°C ~ 50 °C for cold water meter.0.1 °C~ 90°C for hot water meter.
-Water Pressure : PN10 / 16 / 25
-Pressure - loss class : p25
MAXIMUM PERMISSIBLE ERRORS
(1) From minimum flow- rate ( Q1 ) inclusive to transitional
flow - rate ( Q2 ) exclusive + 5%
(2) From transitional flrow-rate ( Q2 ) to overload flow- rate
(Q4 ) : 2% ( Hot Water + 3 %
