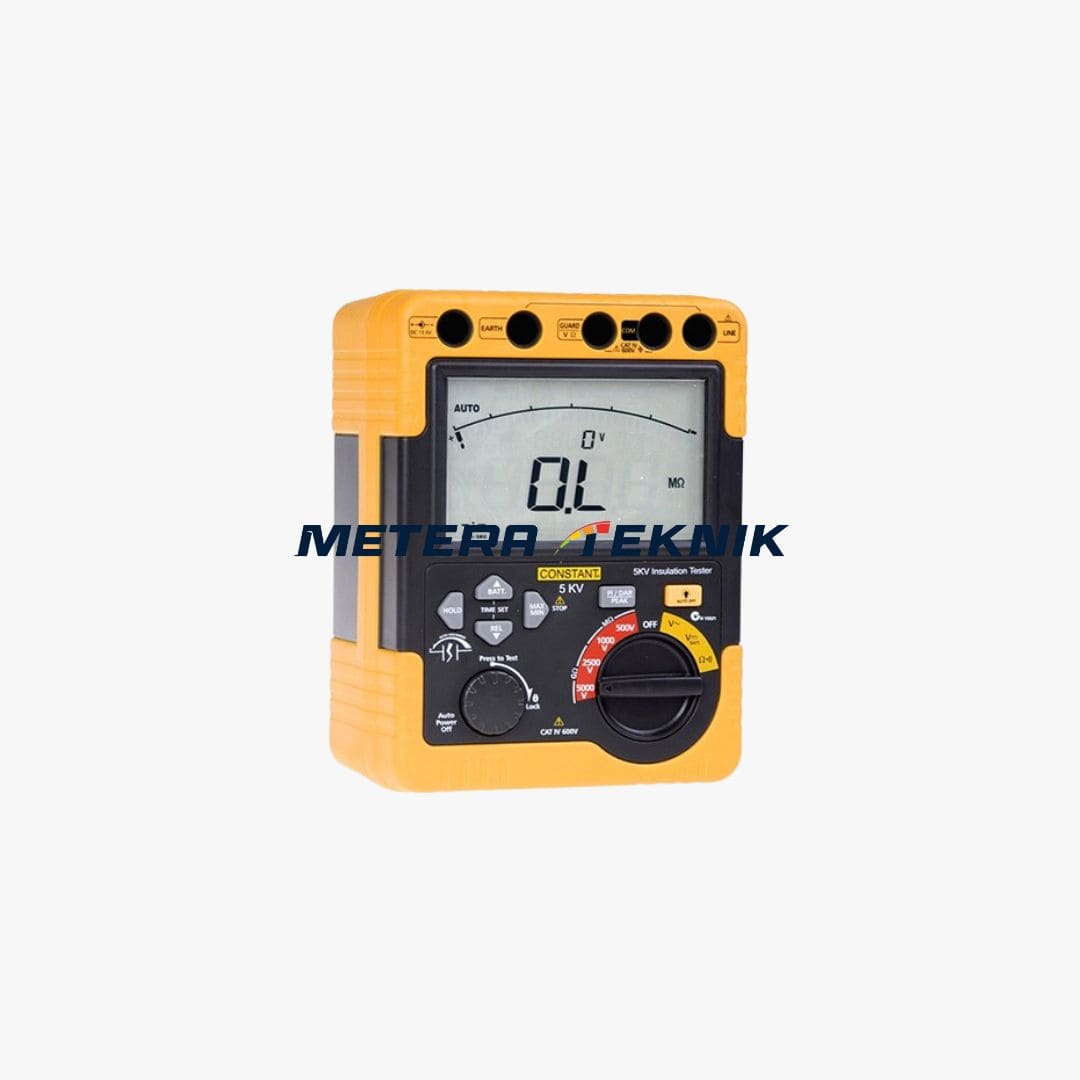

Jual CONSTANT 5KV-DIGITAL MEGGER / INSULATION TESTER
Informasi Produk
- Test Voltage Range: 500V, 1000V, 2500V, 5000V
- Measuring Range (Auto Ranging): 0 – 60.00 GΩ
- Voltage Measurement: AC/DC 0 ~ 600.0V (50-1kHz)
- Resistance Measurement: 0 – 6000 Ω
- Accuracy: ±5% rdg ±3 dgt; ±20% (>6GΩ or more)
- Short Circuit Current: Approx. 1.3mA
- Rated Test Current (At Load Resistance): 1mA - 1.2mA at 5MΩ
- Open Circuit Voltage: 500VDC / 1000VDC / 2500VDC / 5000VDC (+20%, -0%)
- Continuity Check: Buzzer sounds at 50Ω
- Display: 6000 Counts LCD with Bargraph
- Current Consumption: Approx. 1000mA (during measurement)
- Withstand Voltage: 5320V AC for 5 seconds
- Safety Standard: IEC 61010-1 CAT IV 600V, Pollution Degree 2
- Power Supply: DC 12V (R14 x 8 batteries)
- Dimensions: 198 (L) x 148 (W) x 86 (D) mm
- Weight: Approx. 1438g
- Accessories: Test leads, Instruction Manual, 120/250V AC adaptor
CONSTANT 5KV-DIGITAL MEGGER / INSULATION TESTER
Looking for a reliable and advanced tool for high-voltage insulation testing? The Constant 5KV Digital Insulation Tester, offered by Metera Teknik Indonesia, is your ultimate solution for accurate AC/DC voltage resistance, continuity testing, and insulation resistance measurement. Designed as a handheld device, this tester is ideal for professionals in electrical engineering, industrial maintenance, and technical services across Indonesia and beyond.
Engineered to deliver exceptional performance, the Constant 5KV Digital Insulation Tester supports a wide measurement range of up to 5kV and 60GΩ, making it perfect for testing insulation in cables, motors, transformers, and other high-voltage equipment. With its 6000-count LCD display featuring a bargraph, automatic ranging, and timer functions, this device ensures precise and user-friendly operation. Whether you're conducting routine maintenance or diagnosing complex electrical systems, this tester provides the reliability and accuracy you need.
At Metera Teknik Indonesia, we pride ourselves on supplying top-tier technical equipment tailored to industrial needs. The Constant 5KV tester meets the CAT IV 600V safety standard, ensuring safe operation in demanding environments. Key features like auto power-off, battery check, max/min peak readings, and data hold functionality enhance usability, while the output voltage and discharge voltage indicators provide real-time monitoring for added safety.
