Jual Constant ADC1000- DIGITAL CLAMP METER AC/DC
Informasi Produk
Constant ADC1000- DIGITAL CLAMP METER AC/DC

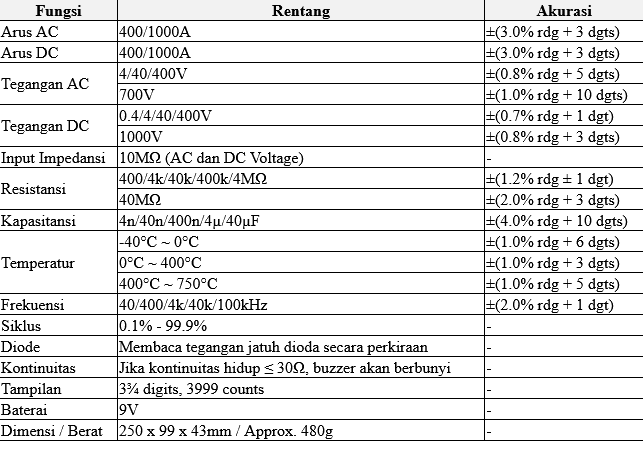

FUNGSI | RENTANG | AKURASI
Arus AC | 400/1000A | ±(3.0% rdg + 3 dgts)
Arus DC | 400/1000A | ±(3.0% rdg + 3 dgts)
Tegangan AC | 4/40/400A | ±(0.8% rdg + 5 dgts)
700V | ±(1.0% rdg + 10 dgts)
Tegangan DC | 0.4/4/40/400V | ±(0.7% rdg + 1 dgt)
1000V | ±(0.8% rdg + 3 dgts)
Input Impedansi | 10MΩ (AC and DC Voltage)
Resistansi | 400/4k/40k/400k/4MΩ | ±(1.2% rdg ± 1 dgt)
400/4k/40k/400k/4MΩ | ±(1.2% rdg ± 1 dgt)
40MΩ | ±(2.0% rdg + 3 dgts)
Kapasitansi | 4n/40n/400n/4µ/40µF | ±(4.0% rdg + 10 dgts)
Temperatur |-40°C ~ 0°C | ±(1.0% rdg + 6 dgts)
-40°C ~ 0°C | ±(1.0% rdg + 6 dgts)
0°C ~ 400°C | ±(1.0% rdg + 3 dgts)
400°C ~ 750°C | ±(1.0% rdg + 5 dgts)
Frekuensi | 40/400/4k/40k/100kHz | ±(2.0% rdg + 1 dgt)
Siklus | 0.1% - 99.9%
Diode | Read approximately forward voltage drop of the diode
Kontiunitas | Jika kontinuitas hidup ≤ 30Ω, built-in pada buzzer akan berbunyi
Tampilan | 3¾ digits, 3999 counts
Baterai | 9V
Dimensi / Berat | H250 x W99 x D43mm / Approx. 480g
Jual Constant ADC1000- DIGITAL CLAMP METER AC/DC
Constant ADC1000- DIGITAL CLAMP METER AC/DC
Constant ADC1000- DIGITAL CLAMP METER AC/DC has a wide range of Constant products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Constant ADC1000 Digital Clamp Meter Digital AC/DC Clamp On Meter Constant ADC1000 AC / DC Digital Clamp meter, Similar to the AC 1000 digital clamp meter but also offers measurements for DC Ampere currents up to 1000 Amperes Voltage more practical when there is a DC Ampere measurement.
Features Constant ADC1000 Digital Clamp Meter
- Auto zero key for DC Current measurement
- DC Current direction sign
- 42 mm jaw opening
- DMM function
- Low battery indication
- OL for over range indication
