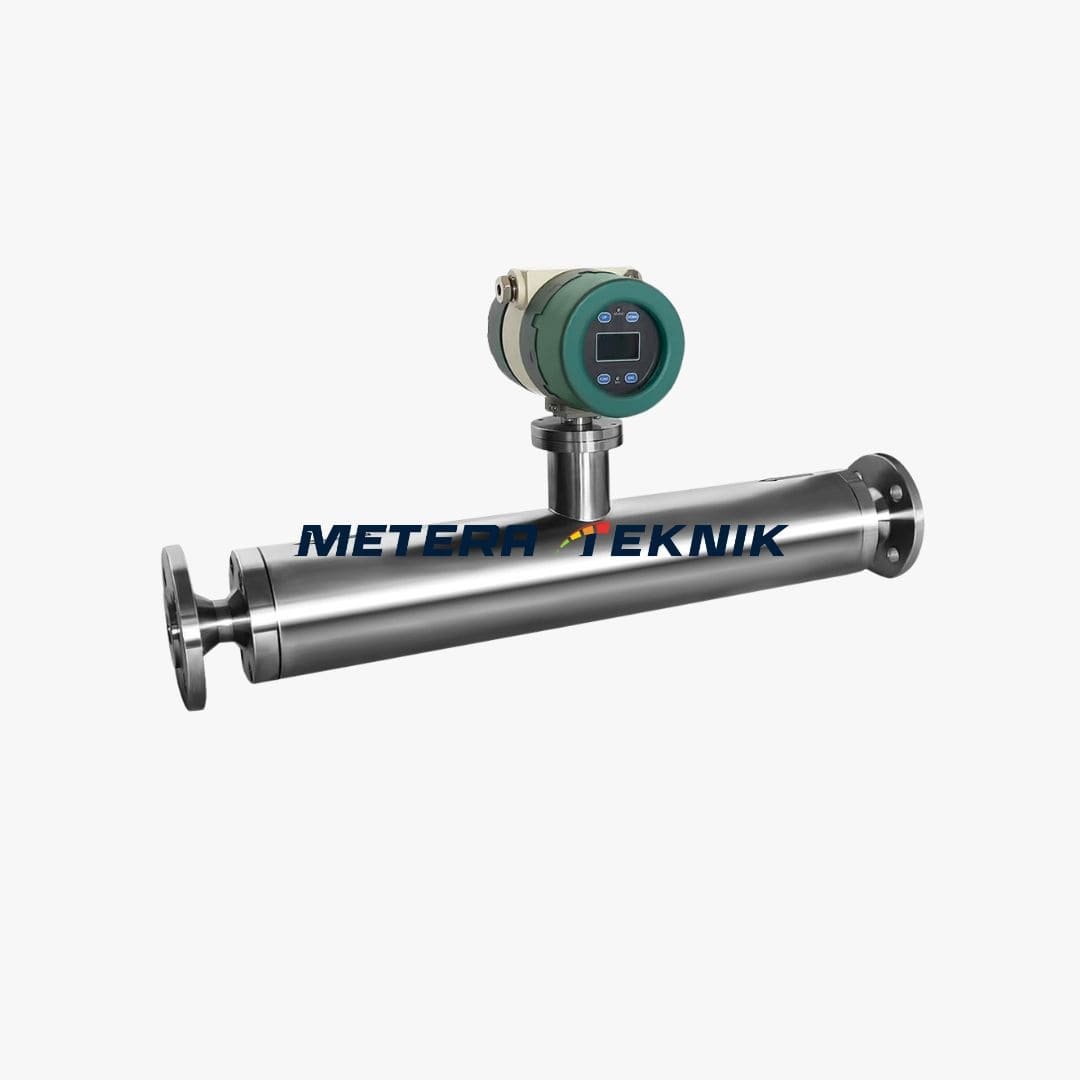

Coriolis Mass Flow Meter SHM Straight Type
Product information
Coriolis Mass Flow Meter SHM Straight Type (DN 8-80) mengukur laju aliran massa cairan secara akurat berdasarkan efek Coriolis. Dirancang untuk lingkungan industri berat, perangkat ini menggunakan kepala aluminium berlapis epoxy dan bodi tabung SS316L tahan korosi. Output digital (Pulse, 4–20mA, RS485) serta proteksi IP67 memungkinkan integrasi dan penggunaan di lingkungan keras. Cocok digunakan untuk berbagai cairan industri berat seperti minyak mentah, minyak berat, bubur batubara, pelumas, hingga gas bertekanan tinggi
Spesifikasi Produk
- Size: DN 8 - 80 (1/4 inch sampai 3 inch)
- Installation Type: U-tube (Separated) or Straight-tube
- Material: Head: Epoxy-coated Aluminum; Body Tube: SS316L; Housing: SS304; Flange: SS304
- Temperature Range: –20 °C to 200 °C (standard); (-50 °C to 300 °C) or (–200 °C to 200 °C) optional
- Pressure Rating: 1.6, 2.0, 4.0 MPa (model-dependent)
- Power Supply: 24 VDC or 220 VAC (selectable)
- Output: Pulse, 4–20 mA, RS485
- Protection Grade: IP67
- Connection: Flange PN16 (Thread or Tri-clamp optional)
- Accuracy: 0.1%, 0.15%, 0.2% or 0.5% (depending on model)
- Measurement Density: 0.3 – 3000 g/cm³
- Repeatability: Approximately ½ of accuracy value (e.g. 0.1-0.2% for 0.2%)
- Explosion-proof Rating: Ex d(ia) IIC T6 Gb
- Warranty: 2 years (full service and spare parts)
