Jual Coriolis Mass Flow Meter SHM Size 6 Inch
Product information
APPLICATION : Crude Oil, Coal Slurry, Lubricant, Asphalt, Heavy Oil, Grease, Cement Slurry, Lime Slurry, High Pressure Gas, High Viscosity Fluids.
- Meter Size : 6 Inch (DN 150mm)
- Flow Range ( kg/h ): 0-1500-1800
- Zero Stability ( Kg/h ): 0.2% : 0.27 ; 0.1% : 0.18
- Weight : 252 Kg

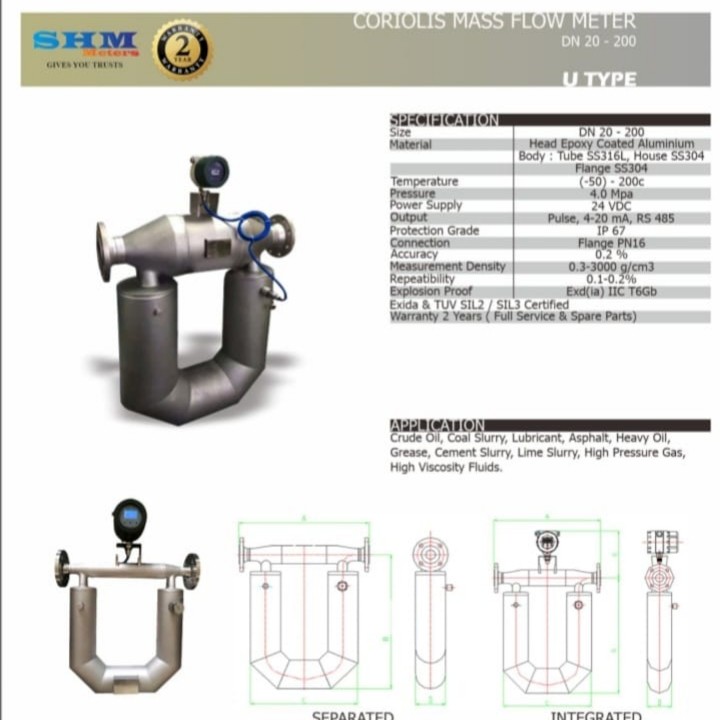

Spesifikasi Produk
- Size : DN 20-200
- Material : Body Epoxy Coated Aluminium Body : Tube SS316L, House SS304 Flange SS304
- Temperature : ( -50 ) - 200c
- Pressure : 4.0 Mpa
- Power Supply : 24 VDC
- Output : Pulse , 4-20 mA, RS 485
- Protection Grade : IP 67
- Connection : Flange PN16
- Accuracy : 0.2 %
- Measurement Density : 0.3-3000 g / cm3
- Repeatibility : 0.1 - 0. 2%
- Explosion Proof : Exd ( ia ) IIC T6Gb
- Exida & TUV SIL2 / SIL3 Certified
- Warranty 2 Years ( Full Service & Spare Parts )
