Jual Coriolis Mass Flow Meter SHM Size 3 Inch
Informasi Produk
Spesifikasi :
Coriolis Mass Flow Meter SHM Size 3 Inch
Meter Size : 3 Inch (DN 80mm)
Flow Range ( kg/h )
0-540-660
Zero Stability ( Kg/h )
0.2% : 0.099
0.1% : 0.066
Weight : 87.5 Kg
Tersedia dan siap dikirim
Jual Coriolis Mass Flow Meter SHM Size 3 Inch

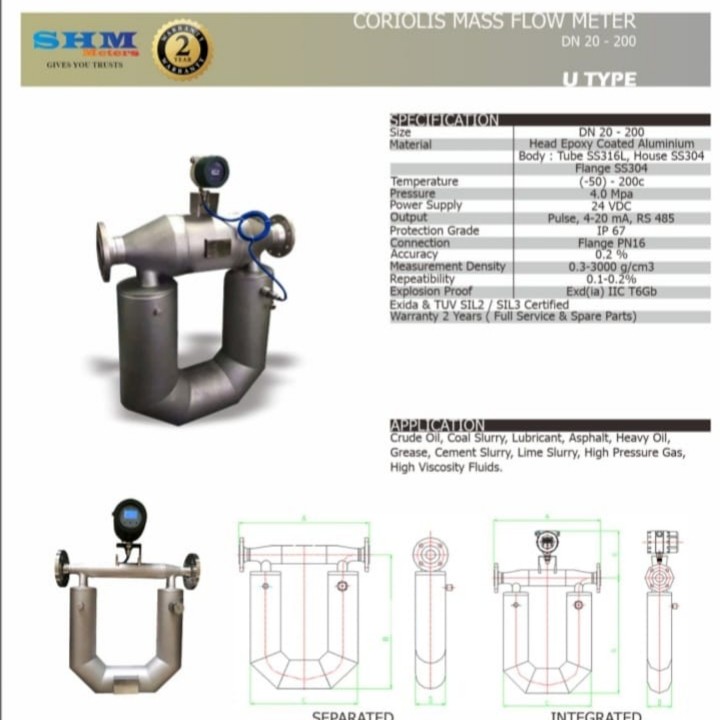

Coriolis Mass Flow Meter SHM
U TYPE
SPESIFICATION
-Size : DN 20-200
-Material : Body Epoxy Coated Aluminium Body : Tube SS316L, House SS304 Flange SS304
-Temperature : ( -50 ) - 200c
-Pressure : 4.0 Mpa
-Power Supply : 24 VDC
-Output : Pulse , 4-20 mA, RS 485
-Protection Grade : IP 67
-Connection : Flange PN16
-Accuracy : 0.2 %
-Measurement Density : 0.3-3000 g / cm3
-Repeatibility : 0.1 - 0. 2%
-Explosion Proof : Exd ( ia ) IIC T6Gb
Exida & TUV SIL2 / SIL3 Certified
Warranty 2 Years ( Full Service & Spare Parts )
APPLICATION
Crude Oil, Coal Slurry, Lubricant, Asphalt, Heavy Oil, Grease, Cement Slurry, Lime Slurry, High Pressure Gas, High Viscosity Fluids.
