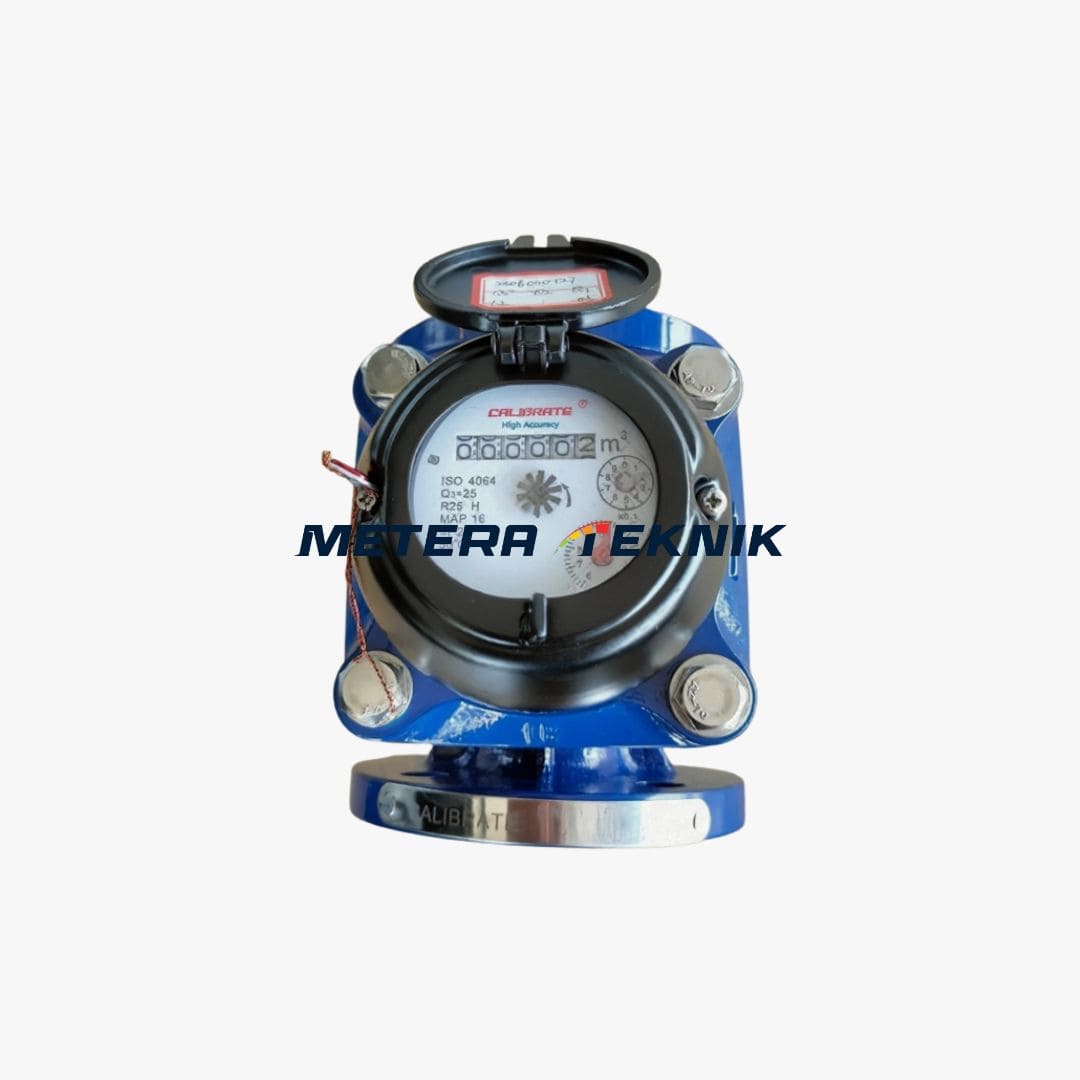

Jual Water Meter Air Limbah Merk Calibrate Size 2 Inch
Informasi Produk
Spesifikasi :
CALIBRATE HIGH ACCURACY Size 2 Inch
Optional Features
-Plasticregister, copper register and full galss regiter.
-Reed switch option.
-Accuracy : R=25.
-Flange standart can be choose.
-360 degree rotate can be choose.
-Cast iron, Ductile iron body.
-Color can be change on body and cover.
Type : LXXG - 50
Flow Technique Spesification
Meter Size : 2 Inch (DN 50mm)
Class : A
Q4 Overload Flow m/3 h : 31.25
Q3 Permanent Flow m/3 h : 25
R = Q3/Q1 : 25
Min Reading m3 : 0.0002
Max Reading m3: 999,999
Tersedia dan siap dikirim
Jual Water Meter Air Limbah Merk Calibrate Size 2 Inch
CALIBRATE HIGH ACCURACY
LXXG ( R ) -50~300 (mm)
irrigation (Sewage ) Horizontal Cold ( hot ) Water Meter
this type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
APPLICATION
-Measuring the volume of cold (hot ) water passing through the pipeline
FEATURE
-Small transmission resistance, large flow capacity, anti-block and strong anti-pollution ability ;
-Dry-dial magnetic drive;
-Vaccum sealed register, frost registant, keeps clear reading for long time;
-Removable measuring unit and strong universality, easyinstallation and maintenance;
-Remote transmission device and be added upon request;such as reed Switch or Hall pulse output;
-The meters conform to ISO4064 Standart.
WORKING CONDITION
-Water temperature : 0.1°C ~50°C for cold water meter 0.1°C ~90°C for hot water meter
-Water Pressure : PN10/16/25
-Pressure- loss class : p25
Maximum permissible errors
(1) From minimum flow - rate ( Q1 ) Inclusive to transitional
flow- rate ( Q2 ) exclusive + 5%
(2) From transitional flow-rate ( Q2 ) to overload flow - rate
( Q4 ) : + 2% ( Hot Water meter + 3 % )
