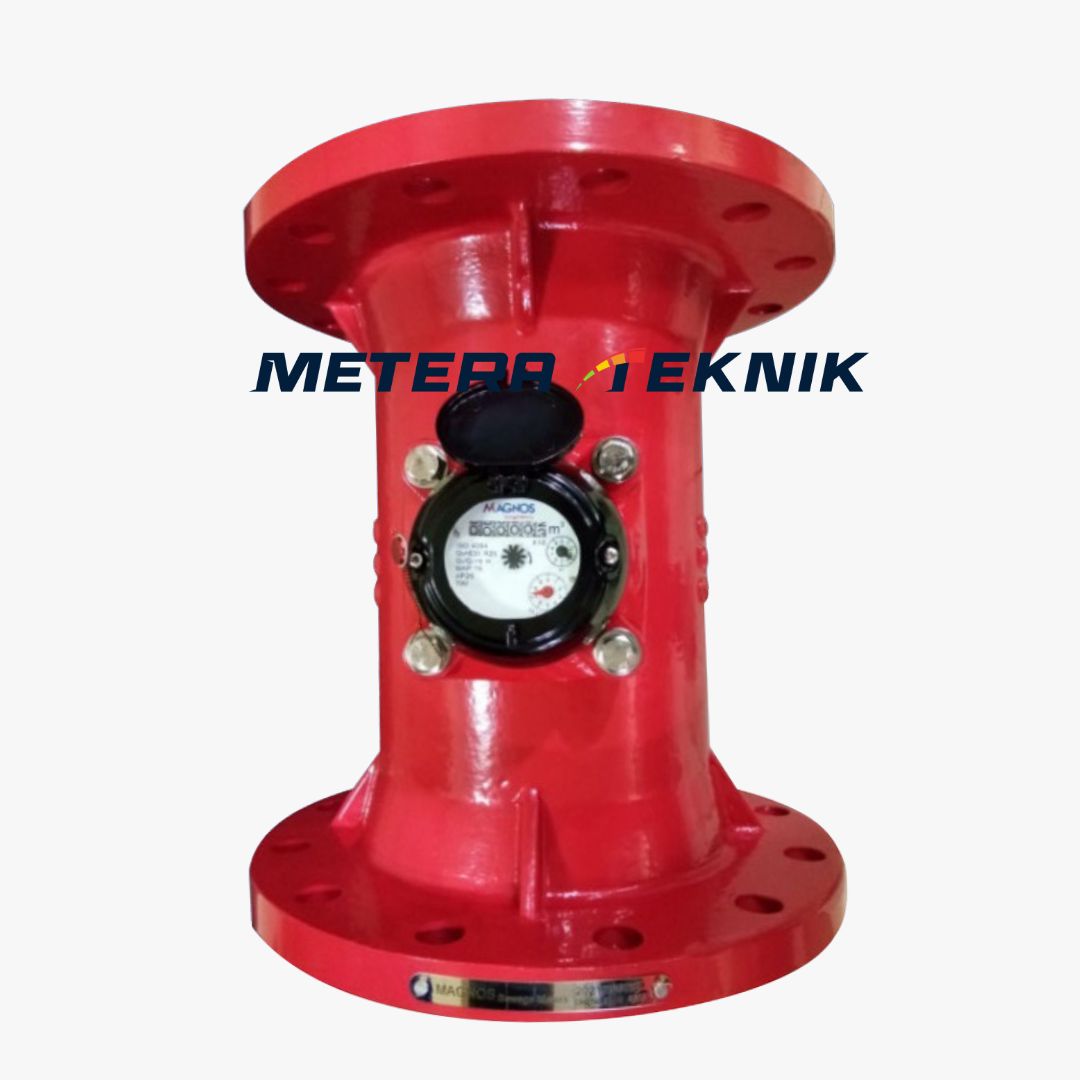

Jual Water Meter Air Limbah Merk Magnos Size 12 Inch
Informasi Produk
Spesifikasi :
Water Meter Air Limbah Merk Magnos Size 12 Inch
Aplication
Suitable For Irrigation And Treates waste water applications
Meter Size : 12 Inch ( DN 300mm )
Max Flow QMax : 1200
Continous Flow QN : 600
Max Pressure
16 Bar
Temperature Range
0.1ºC – 50ºC untuk meteran air tipe cold Water
0.1ºC – 90ºC untuk meteran air tipe hot Water
Tersedia dan siap dikirim
Jual Water Meter Air Limbah Merk Magnos Size 12 Inch
Water Meter Air Limbah Merk Magnos Merupakan alat ukur debit/Volume Air Bersih, Air Kotor, Air Limbah Merk sangat berkualitas tinggi, sehingga sangat cocok dipakai untuk PDAM, Hotel, Apartemen,Limbah Rumah Sakit, Limbah Pabrik, dan lain lain, Water meter ini sangat populer dan tersedia untuk Water Meter Air Panas dan juga water meter Air Dingin
Aplication
-Suitable For Irrigation And Treates waste water applications
Features
-Removable element structure, easy installation and maintenece
-Dry-dial, Magnetic drive
-Large flow capacity, small pressure loss
-Resist water hummer and pollution
WORKING CONDITION
-Water temperature : 0.1°C-50°C ( 0.1°C-90°C for hot water meter )
Maximum Permissible Errors
-In the zone from qmin inclusive up to but excluding qt is + 5%
-Best suited for pumped system and high flow and high flow rates
-Vacuum sealed register ensure the dial keep free from condensation and keep the reading clear in a long term service
-Selected high quality materials for steady and reliable characteristic
-technical data conform to international standard ISO 4060
-Water pressure : < 1.0Mpa ( 1.6Mpa on request ).
-in the zone from qt inclusive up to and including qs is +2% ( =3% for hot water meter )
