Jual Digital Multimeter Victor Model VC9801A+
Informasi Produk
Spesifikasi :
Tegangan DC: 200mV - 1000V (±0.5% + 3)
Tegangan AC: 2V - 1000V (±0.8% + 5)
Arus DC: 200μA - 20A
Arus AC: 200mA - 20A
Resistansi: 200Ω - 200MΩ
Kapasitansi: 6nF - 20mF
Frekuensi: 10Hz - 20MHz
Suhu: -20°C - 1000°C (-4°F - 1832°F)
Tersedia dan siap dikirim

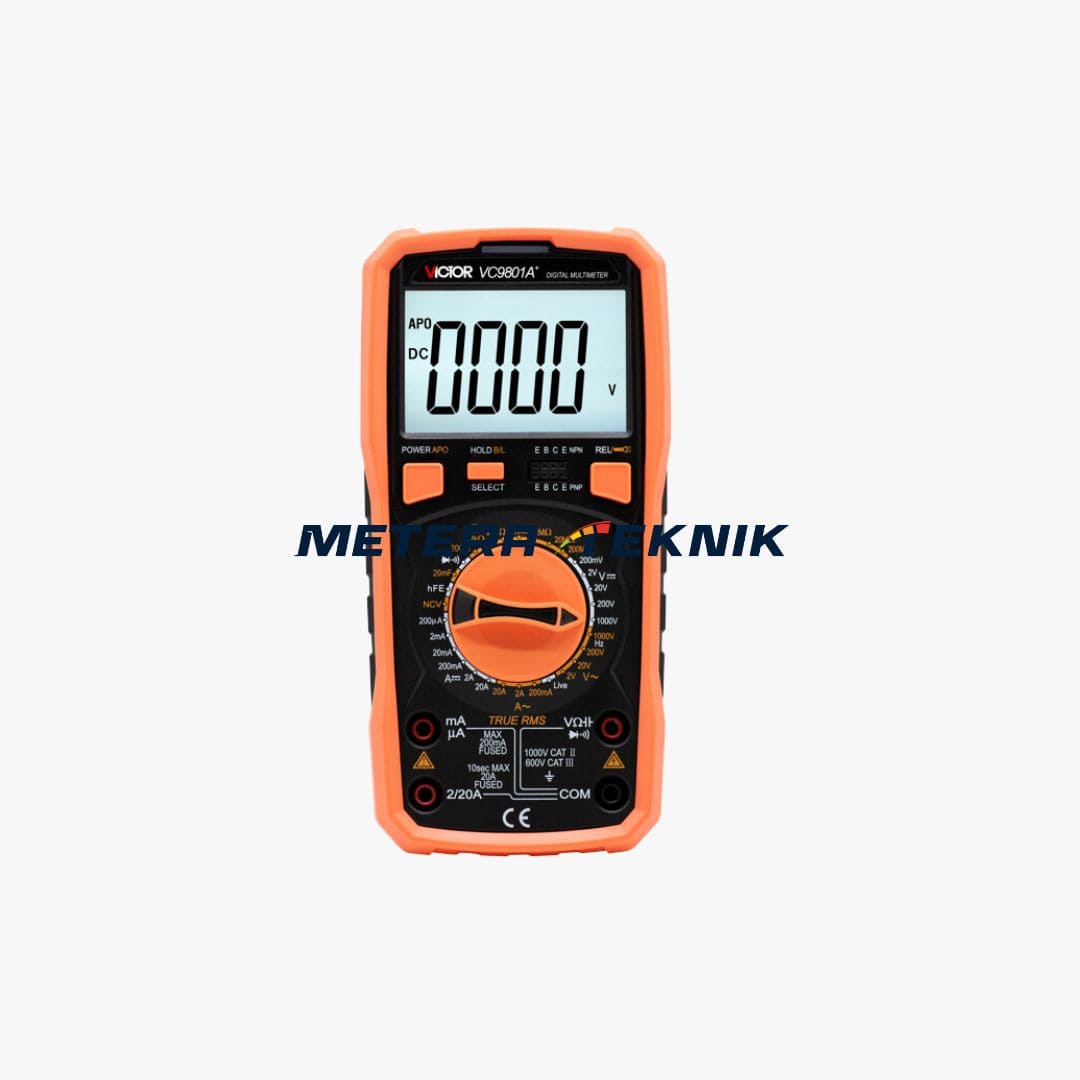

Digital Multimeter Victor Model VC9801A+
VC9801A+ Digital Multimeter 9801A+ True RMS temperature and capacimetro Transistor tester with multitester wires
1. GENERAL
The instrument is a stable and good performance digital multimeter driven by battery. It uses the LCD with 28mm-high figure to make the reading clear, and make the operation more convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, AC frequency, diode, triode and continuity test, temperature and automatic power off, backlight. The instrument takes dual-integral A/D converter as key point, it is an excellent tool.
The new generation series of products add NCV (non-contact ACV induction measurement) function and include the torch function, it is more convenient for users to use.
2. OPEN PACKING FOR CHECKING
Open the box, take out the meter, checking the items below if they are missing or damaging:
1.5V AAA LR03 Battery 4pcs
Instruction 1pc
Test leads 1pair
3. GENERAL SPECIFICATION
- Displaying: LCD displaying
- Max. indication: 1999(3 1/2), auto polarity indication
- Measuring method: dual slope A/D transfer
- Sampling rate: approx. 3 times/sec
- Over range indication: MSD displays “OL”
- Low battery indication
- Operation: 0～40℃,relative humidity <75%
- Storage environment:-20℃~60℃, relative humidity <85%RH;
- Power:Four 1.5V AAA battery LR03
- Size: 186×92×52 mm
- Weight: approx.395g (including batteries)
