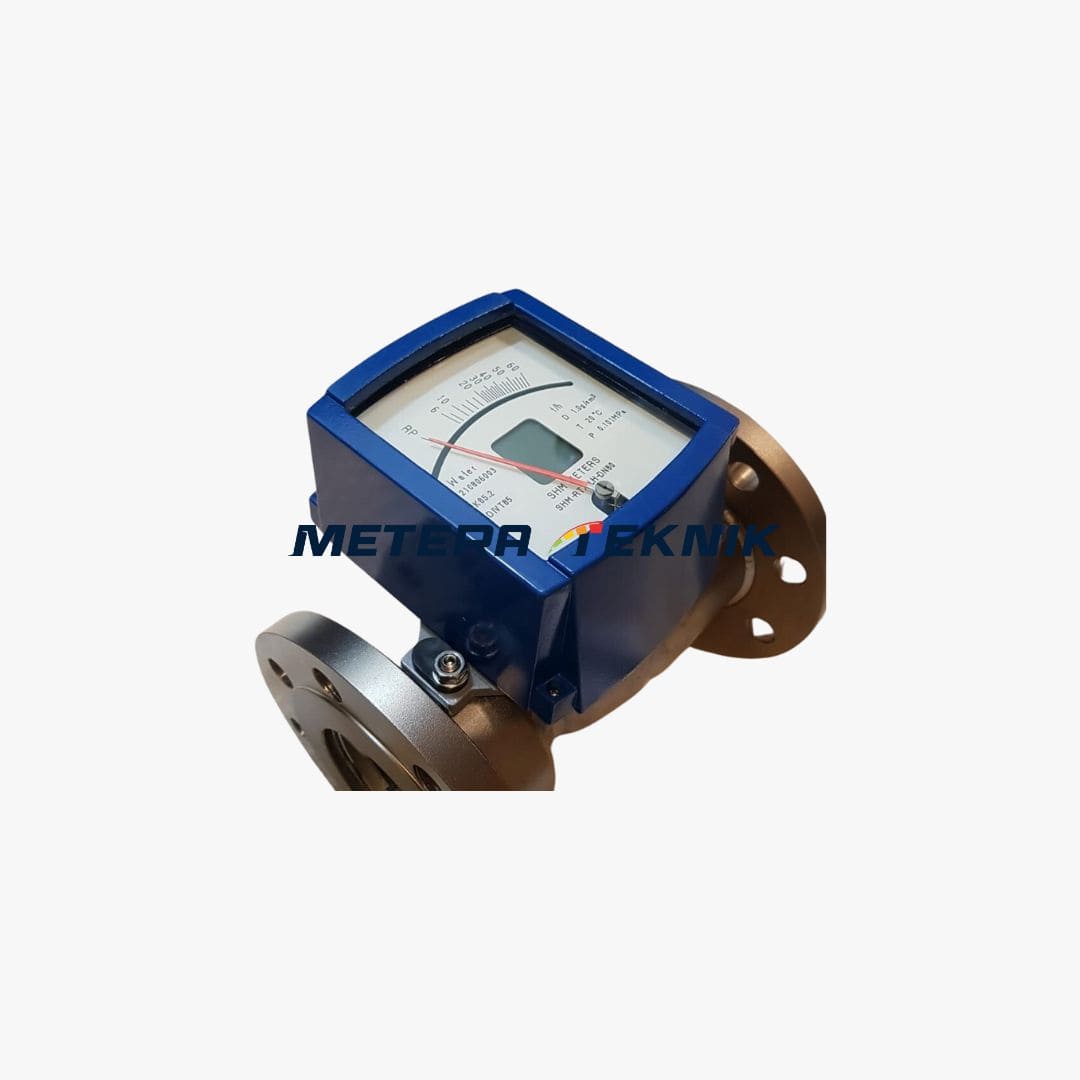

Jual Rotameter Digital Flow Meter SHM Size 4 Inch
Product information
Rotameter Digital Flow Meter SHM 4 Inch (DN 100mm) merupakan alat pengukur aliran variabel area yang dirancang untuk mengukur volume aliran cairan, gas, atau steam secara akurat di lingkungan industri manufaktur. Dengan akurasi ±1.5% dan kemampuan instalasi vertikal atau horizontal, produk ini mendukung aplikasi seperti pengendalian proses kimia, pemantauan air, dan pengukuran gas dengan proteksi IP65 serta output 4-20mA untuk integrasi sistem.
APPLICATION
- Liquid / Gas / Steam.
Spesifikasi Produk
- Meter Size : 4 Inch (DN 100mm)
- Flow Range: Water (1/h ) : 6300-63000 | Air ( Nm3/h ) : 150-1500
- Meterial : Head Plastic ABS Body SS304 Flange SS304
- Temperature : 0-130C / ( 300C Opt )
- Pressure : DN 15-50 = 40 Bar / DN 80-150 =16 Bar
- Power Supply : 24 VCD
- Output : -4-20mA
- Protection Grade : IP 65
- Connection : Flange PN 16 / Screw / Clamp
- Accuracy : + / -1.5%
- Measurement Range : Request
- Type : Vertical / Horizontal
- Explosion Proof : ExdIIBT4
- ISO 9001 & ISO 4064
- Warranty 2 Years ( Full Service & Spare Parts ) Digital Totalizer
- Weight : 14 kg
